Radiographic Factors Affecting Lordosis Correction After Transforaminal Lumbar Interbody Fusion With Unilateral Facetectomy

INTRODUCTION

Significant emphasis has been placed on restoring sagittal balance after lumbar spine procedures. Sagittal imbalance increases the muscular forces required to stay upright and is closely associated with worsening back pain and lower patient-reported outcome measures.¹ Historically, sagittal imbalance has been associated with long fusion constructs.² However, short segments that are fused in kyphosis increase the amount of lordosis required at adjacent segments. This adjacent segment hyperextension may compensate for a short time, but as the adjacent segment deteriorates, the compensatory effect is lost, and global imbalance can subsequently occur.³ Thus, lordosis correction has been emphasized even in short segment constructs.⁴

Transforaminal lumbar interbody fusion (TLIF) is a well-established technique that is reported to provide better lordosis correction than posterolateral fusion alone.⁵ However, the amount of segmental lordosis achieved after TLIF is variable, with some authors reporting slight segmental kyphosis after TLIF.^6–9 Clearly, technique-related factors influence the amount of lordosis that is possible, such as placing the cage anteriorly in the disc space or performing bilateral facetectomies. However, it is the authors' experience that, even in cases with identical surgical technique, the amount of lordosis achieved is somewhat variable.

Thus, we hypothesized that certain radiographic characteristics would be associated with the postoperative radiographic outcomes. We retrospectively reviewed a consecutive series of 107 cases of TLIF performed with unilateral facetectomy at L4–5 by a single surgeon. The findings should be useful in preoperative (preop) planning and patient counseling.

METHODS

Radiographic Measurements

All 107 patients had preop and 6-week postoperative digital lumbar radiographs available (General Electric Healthcare, Centricity, Chicago, IL). We used the Cobb angle function to measure the overall lumbar lordosis from L1–S1, the segmental lordosis at L4–5, and the segmental disc angle at L4–5. In addition, we used the ruler function to measure the disc space height anteriorly at L4–5, the disc space height posteriorly at L4–5, and the Meyerding grade (Figure 1). A total of 62 patients had preop computed tomography (CT) scans available, and these images were reviewed to verify the presence or absence of a vacuum disc. The measurements were performed by an orthopaedic research fellow and reviewed by a fellowship-trained orthopaedic spine surgeon. Standard definitions of each measurement were agreed upon before imaging review (Addendum 1), and each radiographic reviewer attended a 2-hour training session in order to help ensure standardized measurements across each reviewer.

• Download figure
• Open in new tab
• Download powerpoint

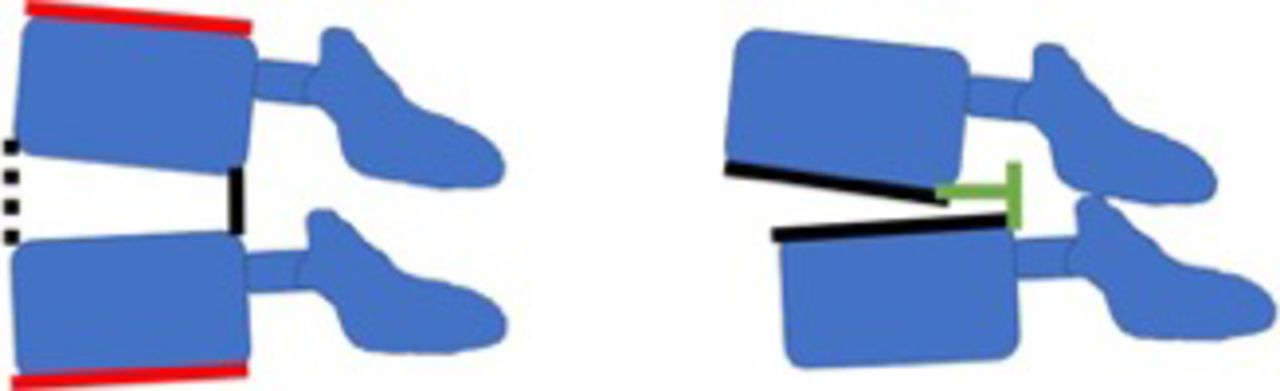

Figure 1

Radiographic measurements. Segmental lordosis (left, Cobb angle between red lines), disc space height (left, dotted black anteriorly and solid black posteriorly), segmental disc angle (right, Cobb angle between black lines), and Meyerding grading (right, green lines).

RESULTS

DISCUSSION

Few prior studies have investigated the predictive value of preop radiographs and patient characteristics in predicting the expected lordosis correction after a TLIF. In this study, we found that a disc space that was kyphotic preop or the presence of a preop vacuum disc were associated with greater lordosis correction after TLIF. Several findings merit further discussion.

The mean segmental lordosis correction in our study was 2.5°. This finding is in line with prior studies, which have concluded that segmental lordosis correction after TLIF with a unilateral facetectomy is negligible on average.^5,6 However, the overall range of segmental lordotic change was quite variable, and in some patients, the TLIF was actually kyphogenic (range of change in segmental lordosis = −9° to 16°). While not every patient with an L4–5 problem requires a substantial increase in lordosis, we generally try to avoid creating kyphosis in this anatomic region. Indeed, one of the key pieces of rationale for using an interbody device, as opposed to posterolateral fusion alone, is that the presence of the interbody decreases the likelihood of causing segmental kyphosis.⁵ A similar surgical technique was used in each case. In our surgeries, the patients are placed on a Jackson frame with the hips extended to mimic a neutral standing posture. Furthermore, we used a banana-type cage placed anteriorly in the disc space, and anterior cage placement has been associated with increased lordosis correction.¹¹ The fact that such variability was seen, in spite of a similar technique in each case, emphasizes the importance of patient-specific factors on the ultimate radiographic outcome.

In this study, we looked at basic demographic as well as radiographic characteristics. Body mass index, gender, age, and surgical indications were similar across the 2 groups. However, both patients who had segmental kyphosis and those with a preop vacuum disc were more likely to be associated with a minimum of 5° of lordosis correction in the univariate analysis, and preop segmental kyphosis was predictive in the multivariate analysis. Both groups ended up with similar final segmental alignment postoperatively (18.4° vs 20.6°, P = 0.16). In other words, patients with an unstable kyphotic segment tended to have more correction. In these cases, the TLIF cage in the disc space helps to realign the segment back to at least neutral. Thus, the overall change is a substantial net positive increase in lordosis. In contrast, the patients who already had a lordotic disc space to begin with did not have much farther to go (Figure 2).

• Download figure
• Open in new tab
• Download powerpoint

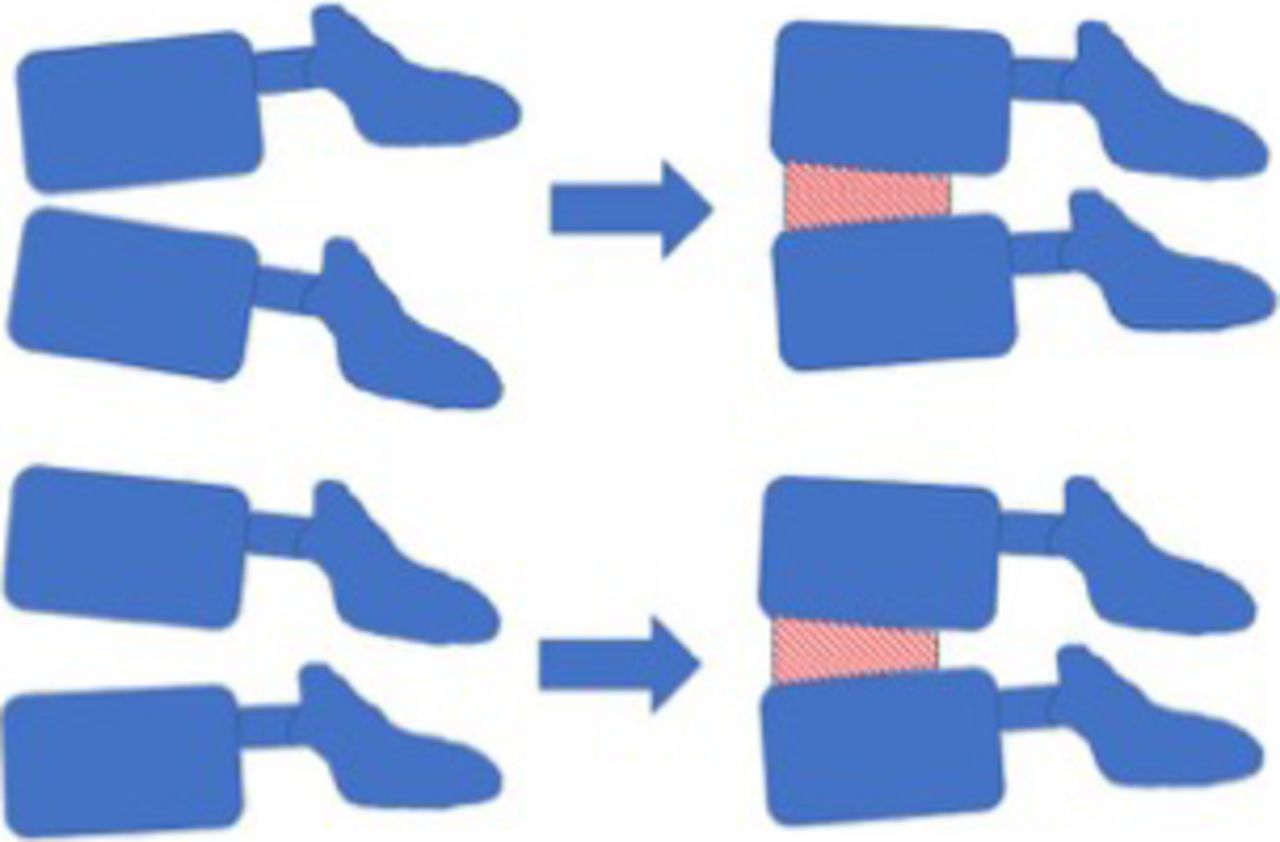

Figure 2

Comparison of the corrective effect of a TLIF cage on a segment with preoperative kyphosis (top) in comparison to a segment with preserved preoperative lordosis (bottom). The kyphotic segment experiences a substantial change in alignment, whereas the lordotic segment does not see much additional change, and both groups end up with a similar final alignment.

The study does have several weaknesses. Notably, only 64 patients had a preop CT scan available for review. Thus, the presence or absence of a vacuum disc sign could not be included in the multivariate analysis. We suspect that this factor is indeed associated with instability in the segment and therefore a greater ability to impart lordosis during correctional maneuvers, although a more complete dataset would be required for confirmation. Secondly, our inclusion of radiographic variables was not exhaustive, and there may be additional factors that impact lordosis correction. However, we feel the measurements included here represent a reasonable cross-section of those that are commonly used in practice. Third, we included 4 different clinical entities from the L4–5 level (100 cases degenerative spondylolisthesis, 4 cases facet cyst, 2 cases recurrent disc herniation, and 1 case isthmic spondylolisthesis), and it is possible that radiographic outcomes vary across these entities. While narrowing the inclusion criteria might have created a more uniform dataset, we feel that, by presenting all operative cases performed at the L4–5 level, we have given the reader an accurate understanding of the true clinical practice and outcomes of the senior surgeon. Further, we chose to measure the postoperative radiographs at the 6-week timepoint. It is possible that fusion status, specifically a nonunion with subsequent settling, could also affect lordosis correction. However, this study does not assess that impact and looks solely at the immediate postoperative correction. Lastly, this study focused solely on radiographic outcomes. We did not investigate other common clinical parameters, such as blood loss, length of hospital stay, or patient-reported outcome measures, and our data cannot be correlated with those measures.

Certainly, multiple techniques are available for increasing lordosis correction after a TLIF. Notably, placing a cage anteriorly in the disc space with bilateral facetectomies, followed by compression before final rod tightening, would likely result in substantially higher lordosis correction than what was observed here. However, that technique is more surgery, more destabilizing, and not the most frequently used method of TLIF. The goal of this study was not to determine the maximum amount of lordosis correction that could be achieved with a TLIF. Rather, we wished to determine when more segmental lordosis could be achieved using the most common TLIF technique. Notably, preop radiographic factors did influence the radiographic outcome when the technique was performed in a standard fashion with a unilateral facetectomy. We feel these results should be useful in preop planning for TLIF. If a patient has a kyphotic segment but needs only a small overall increase in sagittal alignment, then TLIF with a unilateral facetectomy may be appropriate, and the surgeon can reliably expect that the TLIF will help bring that segment at least back to neutral. However, if the segment is already lordotic and the surgeon hopes to achieve a further increase in lordosis for the purpose of promoting better overall sagittal balance, then an alternative technique could be considered.
