Recombinant Human Bone Morphogenetic Protein–2 Improves Spine Fusion in a Vitamin D–Deficient Rat Model

INTRODUCTION

Spine fusion procedures are commonly used to treat degenerative spine diseases; however, success rates remain highly variable with pseudoarthrosis rates ranging from 5% to 34%.¹ Multiple factors have been implicated in the failure of spine fusion surgery, including tobacco use, infection, and low bone mineral density. While poor bone quality associated with osteoporosis is known to affect the stability of spine instrumentation and fusion status, little consideration has been given to the role of vitamin D deficiency on spine fusion outcomes.

Vitamin D is a group of fat-soluble prohormones that plays an important role in bone mineralization, overall musculoskeletal health, and fracture prevention. Although there is no widespread consensus on the optimal dosage regimens of vitamin D for various age groups, vitamin D deficiency is often defined as serum levels of 25-hydroxy vitamin D (25[OH]D) below 20 ng/mL and vitamin D insufficiency is defined as serum levels between 20 to 30 ng/mL. Vitamin D deficiency has long been recognized as a common medical problem, particularly in the elderly, that can result from a lack of adequate dietary intake or exposure to ultraviolet B rays, disorders that limit vitamin D absorption, and conditions that impair the conversion of vitamin D into active metabolites. More recently, however, the prevalence of asymptomatic vitamin D deficiency and insufficiency in otherwise healthy adolescents and adults has received a great deal of attention. Studies have shown that up to 42% of otherwise healthy young adults have low vitamin D levels.^2,3 Furthermore, 2 recent studies of patients scheduled to undergo spine surgery found that nearly 60% of patients with spine disorders had insufficient levels of vitamin D at their preoperative assessment.^4,5 Thus, vitamin D deficiency is an issue in this patient population that should be considered when evaluating patients for surgery.

The majority of clinical research on vitamin D and skeletal health has focused on the elderly, osteoporotic postmenopausal women, and fracture healing. In general, these studies have shown that serum 25(OH)D levels are inversely related to the risk for hip and spine fractures^6–8 and that vitamin D supplementation can improve callus formation and fracture healing.⁹ Several animal studies have also investigated the effects of vitamin D on fracture healing and found that supplementation with vitamin D increased callus formation, bone remodeling, and trabecular number.¹⁰ Other animal studies have used a vitamin D–deficient rat model to investigate the effects of low serum vitamin D levels on various aspects of health. Kaastad et al¹¹ found that rats maintained on a vitamin D–depleted diet had reduced distal tibial trabecular bone volume and ultimate stress in the femoral shaft. Similarly, Lee et al¹² maintained rats on a vitamin D–deficient diet plus various levels of supplemental vitamin D₃ and found a significant correlation between circulating levels of 25(OH)D and femoral trabecular bone volume, L2 vertebral trabecular bone volume, and midshaft tibial cortical bone volume. These studies show that vitamin D plays a role in bone volume and fracture healing, which could suggest that vitamin D deficiency may also increase the risk for pseudoarthrosis after spine fusion surgery.

Thus, the goal of this study was to determine the effects of vitamin D deficiency on posterolateral lumbar fusion in vivo using a rat model, which is an accepted animal model for studying both spine fusion and vitamin D deficiency.^12,13 Furthermore, given that recombinant human bone morphogenetic protein–2 (rhBMP-2) has been shown to improve outcomes in patients with certain risk factors for pseudoarthrosis,¹⁴ we also investigated the ability of rhBMP-2 to overcome the potential detrimental effects of vitamin D deficiency on fusion outcomes. We hypothesized that rats maintained on a diet depleted of vitamin D would have poorer fusion outcomes than rats fed a standard diet that includes vitamin D. We further hypothesized that immediate postoperative rescue of vitamin D levels would result in better fusion outcomes than those of rats maintained on the diet depleted of vitamin D. Lastly, we hypothesized that the use of rhBMP-2 would improve fusion outcomes, as compared to allograft alone, in rats with low vitamin D levels.

METHODS AND MATERIALS

RESULTS

Micro-CT Fusion Analysis

Micro-CT fusion scoring (Table 4) and a panel of representative 3-dimensional reconstructed images (Figure 1) show results that were similar to manual palpation testing. A χ²test demonstrated no differences in fusion rates among the vitamin D groups. After combining results across the 2 levels and vitamin D groups, rhBMP-2–treated fusion scores were significantly higher than allograft-treated levels (4.58 versus 2.77, respectively, P < .0001) and significantly more levels received a score of 4-5, indicating fusion (88.9% versus 11.1%, respectively, P < .0001). Mean fusion scores were similar between the 2 levels (3.92 at L3-4 versus 3.42 at L5-6, P = .053). However, 60% of fusions at the L3-4 level received a score of 4-5, indicating a successful fusion, and only 40% of the L5-6 levels were scored as successfully fused (P = .009).

View this table:

• View inline
• View popup
• Download powerpoint

Table 4

Fusion scoring from 3-dimensional reconstructed micro–computed tomography images at 6 weeks postoperative.^a

• Download figure
• Open in new tab
• Download powerpoint

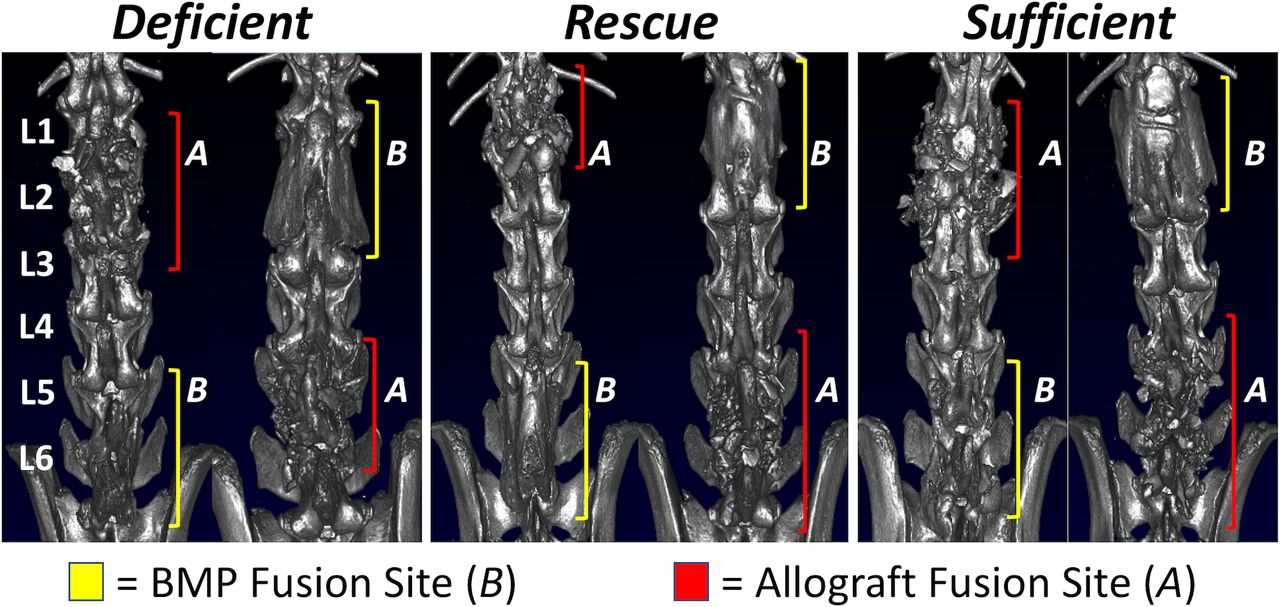

Figure 1

Three-dimensional micro–computed tomography reconstructions show dorsal views of representative spines from each group in vitamin D Deficient, Rescue, and Sufficient groups with allograft (A; red) and recombinant human bone morphogenetic protein–2 (B; yellow) fusions at both L3-4 and L5-6.

Micro-CT Morphometry

L5 Vertebral Bodies

We verified that grafting material had no influence on bone microarchitecture in the intact L5 vertebral bone and that no graft material was present at this site (Figure 2). Thus data were pooled into the 3 vitamin D groups: Deficient, Sufficient, and Rescue and evaluated for BV/TV, Tb.Th, and Tb.Sp (Figure 3). BV/TV was greatest in rats fed a Sufficient diet and decreased by 47.5% (P < .0001) in rats maintained on the Deficient diet. BV/TV also decreased by 35.1% (P < .01) in Rescue rats that were transitioned to the standard diet after surgery. Measures of trabecular bone were similarly influenced by diet, with Sufficient rats showing superior outcomes. Specifically, Tb.Th was significantly decreased in both vitamin D Deficient (−33.8% decrease, P < .001) and vitamin D Rescue rats (−33.5% decrease, P < .001), as compared to the Sufficient group. Similarly, Tb.Sp was significantly increased in vitamin D Deficient rats as compared to Sufficient rats (+38.5% increase, P < .0001). Tb.Sp was also increased in Rescue rats, but not significantly more than sufficient rats (+9.7%, not significant).

• Download figure
• Open in new tab
• Download powerpoint

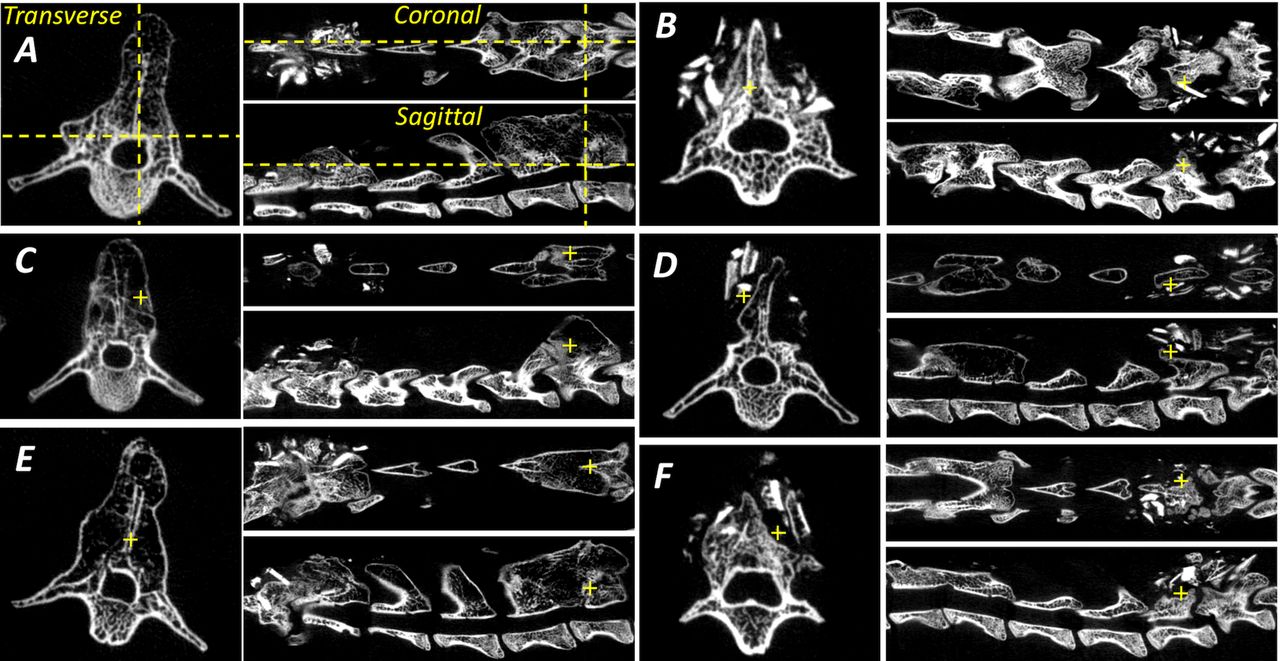

Figure 2

Micro–computed tomography images show representative coronal and sagittal views of spines for rats in vitamin D Sufficient (A, B), Deficient (C, D), and Rescue (E, F) groups. Transverse views spanning each lower lumbar fusion (L5-6, marked with +) showed robust bone formation with recombinant human bone morphogenetic protein–2 treatment (A, C, E), but not in the presence of allograft (B, D, F).

• Download figure
• Open in new tab
• Download powerpoint

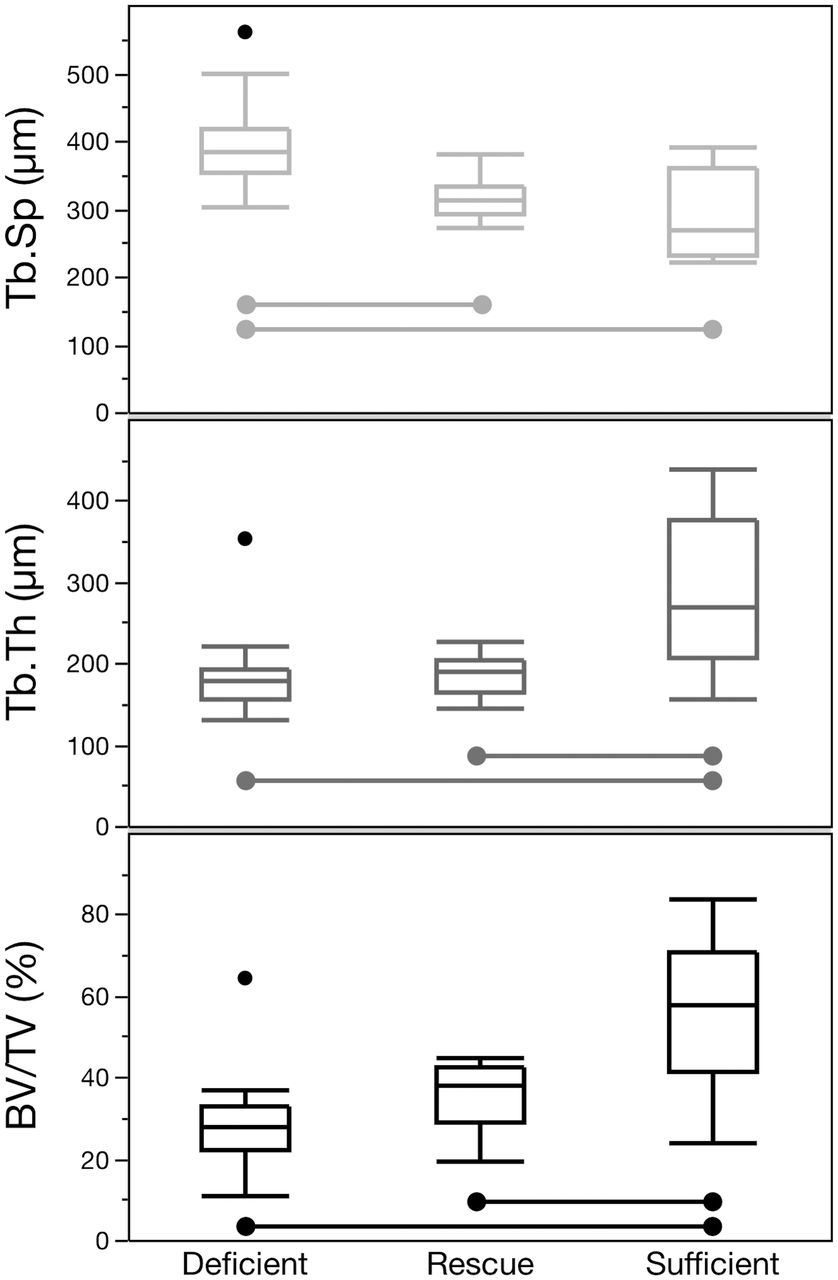

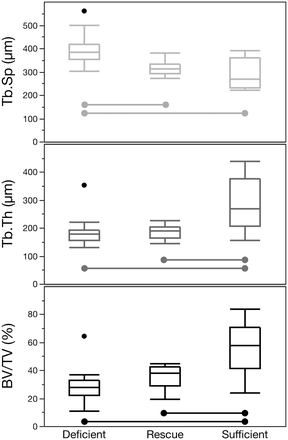

Figure 3

Bone microarchitecture outcomes from trabecular bone within intact L5 vertebral bodies to assess influence of dietary vitamin D are plotted as a box-and-whisker plot. Two-way ANOVA (α = .05) demonstrated an effect of diet but no effect of graft (eg, recombinant human bone morphogenetic protein–2 versus allograft), and post-hoc Tukey tests (α = .05) revealed a consistent improvement with vitamin D sufficiency but not the rescue treatment. All differences are highly significant (P < .0001) and are noted as connecting bars between groups. BV/TV indicates bone volume fraction; Tb.Th, trabecular thickness; Tb.Sp, trabecular spacing.

Transverse Processes within Fusion Masses

Qualitative evaluation of reconstructed micro-CT images revealed significant variations in the extent of decortication. While the transverse processes appeared to be consistently decorticated, large portions of the spinous process were also partially or completely decorticated in many of the fusion sites. Quantitative evaluations could not be performed in allograft levels because they lacked consistent regions of fused bone and failed to demonstrate bridging to the consistency required for region-of-interest declaration (Figures 1, 2, and 4). However, robust bone formation was consistently observed at rhBMP-2–treated fusions, thus regions of interest could be identified and were carefully positioned to include both the cortical shell surrounding the fusion site and trabecular bone within the fusion. Micro-CT assessment of rhBMP-2 fusion masses showed that fusions at L3-4 had greater BV/TV (P = .038) and improved trabecular microarchitectural measures (Tb.Th, P < .0001; Tb.Sp, P < .05) over fusions at L5-6 (Table 5). Overall, vitamin D status also influenced fusion outcomes, with a 2-way ANOVA revealing effects of vitamin D treatment on Tb.Th (P = .019) and BV/TV (P = .057). At the L3-4 level, vitamin D deficiency significantly decreased Tb.Th by 14.9% (P < .10) as compared to Sufficient levels, and there was a trend toward decreased BV/TV. Similar trends toward decreased Tb.Th and BV/TV were also seen at the L5-6 level of Deficient rats. Overall, Tb.Th, Tb.Sp, and BV/TV in the fusion masses of Rescue rats were similar to Sufficient levels and generally showed improved microarchitecture over Deficient levels.

• Download figure
• Open in new tab
• Download powerpoint

Figure 4

Montaged images (×5 magnification) showing regions of fused bone (pink) at L5-6 for Sufficient, Deficient, and Rescue groups are presented. Recombinant human bone morphogenetic protein–2 fusions are denoted by a thin cortical bone-like shell surrounding thin trabeculated bone and marrow (light blue); the partially decorticated spinous process is retained in some samples. Allograft fusions reveal discontinuous bone formation with allograft both forming continuous bone structures with fusion bone as well as allograft fragments surrounded entirely by blue-stained connective tissue.

View this table:

• View inline
• View popup
• Download powerpoint

Table 5

Microarchitectural outcomes of recombinant human bone morphogenetic protein–2 fusion sites at 6 weeks postoperative. Data are reported as mean ± SD.

Histological Analysis

Histology of fused bone masses confirmed the variable morphology of fusion sites and decortication of the spinous process (Figure 4). Histological analysis also confirmed the observation that robust bone formation was present in rhBMP-2–treated fusions, and discontinuous bone was formed in allograft-treated fusions. In addition, both histological analysis and micro-CT assessments revealed that bone formed within rhBMP-2–treated fusions possessed a thin cortical shell surrounding the fusion and thin trabeculae that contained large gaps filled with marrow. Within allograft fusions, trabeculae were generally thicker than those in the rhBMP-2 fusions and often formed continuous bridges with both the residual spinous process and allograft fragments (Figure 5). However, fused bone in the allograft levels was not consistently bilateral and allograft fragments were often surrounded by soft tissue and not integrated with living bone. Bone masses were present but were often disconnected and possessed irregular morphometry. Both mature (ie, cortical) and immature (ie, porous and woven-like) bone was present in fused regions of both rhBMP-2– and allograft-treated groups across all vitamin D groups (Figures 4 and 5). Scoring of histological measures produced no discernable pattern in treatment outcomes except to highlight the already noted presence of allograft fragments surrounded by dense connective tissue and the rare presence of small, but inconsistently located, amounts of fibrocartilage.

• Download figure
• Open in new tab
• Download powerpoint

Figure 5

Histology images (×5) show bone within fusions at L5-6 with recombinant human bone morphogenetic protein–2 and allograft in Deficient, Sufficient, and Rescue groups. Arrows indicate decorticated spinous process, M = marrow, S = skeletal muscle, and A = allograft.

DISCUSSION

In this in vivo study, we investigated the effects of vitamin D sufficiency, deficiency, and rescue in a rat L3-4/L5-6 posterolateral spine fusion model, and further compared allograft to rhBMP-2 within each vitamin D group. Overall, treatment with rhBMP-2 led to high rates of fusion, with nearly all treated levels achieving fusion across the vitamin D groups. Three-dimensional reconstructed images showed that fusions using rhBMP-2 had smooth, uniform fusion masses between transverse processes, while fusions using allograft had fusion masses consisting of cortical bone fragments that lacked continuous bone deposition. While the results of fusion assessments did not show a clear influence of vitamin D status, micro-CT assessment revealed significant effects of vitamin D on trabecular bone microarchitecture. Finally, histological assessment highlighted the visible morphological differences between rhBMP-2– and allograft-treated fusion masses.

Although we hypothesized that fusion rates would decrease in rats maintained on the vitamin D–deficient diet prior to and after surgery, the 3 vitamin D diet groups had similar manual palpation and micro-CT fusion scores and rates within each level. The results from manual palpation and micro-CT fusion assessment suggest that the L5-6 level is a more challenging environment for fusion than that of L3-4: at L5-6 rhBMP fusion success was reduced and none of the allograft-treated rats appeared to be fused on reconstructed micro-CT images. This is likely due to increased stress at the more caudal segment and potential displacement of the graft material away from the transverse process fusion site.

The microarchitecture of intact L5 bodies was assessed on micro-CT reconstructions to evaluate the effects of vitamin D deficiency on untreated bone. After verifying that there was no effect of graft material on extant bone microarchitecture, the data were pooled into the 3 dietary vitamin D groups. This analysis demonstrated a significant effect of dietary vitamin D with Sufficient vertebrae showing higher BV/TV, increased Tb.Th, and decreased Tb.Sp as compared to Deficient vertebrae. The microarchitecture of intact Rescue vertebral bodies was similar to Deficient vertebrae in terms of BV/TV and Tb.Th, and was only superior to Deficient vertebrae in the measure of Tb.Sp. These results indicate that postoperative transition to a standard diet in the Rescue group was insufficient to mitigate most microarchitectural decrements in extant trabecular bone following prolonged vitamin D deficiency.

Micro-CT reconstructions were also used to score fusion and to evaluate trabecular bone morphometry in the fusion masses between transverse processes. Similar to manual palpation findings, fusion rates were higher in rhBMP-2 versus allograft levels, and were also more successful at the L3-4 level. When evaluating bone microarchitecture of fusion masses, only rhBMP-2–treated levels could be analyzed because allograft-treated levels lacked the bridging bone needed to identify a region of interest. rhBMP-2–treated levels revealed statistically significant effects of vitamin D diet on BV/TV and Tb.Th, with Deficient bone masses showing diminished microarchitectural measures as compared to the Sufficient and Rescue groups. Importantly, these findings show that there were differences in trabecular bone morphometry within the fusion masses even though assessments via micro-CT and manual palpation did not find differences between vitamin D groups. Further, measures of bone microarchitecture in the Rescue group fusion masses were overall similar to those of Sufficient rats. This is in contrast to the findings in intact vertebral bodies, where the quality of trabecular bone in the Rescue group was largely diminished compared to the Sufficient group. This finding indicates that healing bone contained within fusion regions is highly susceptible to circulating vitamin D levels, whereas untreated bone within extant regions was not affected by the short-term increased serum vitamin D levels. This outcome is likely due to little turnover taking place in skeletally mature, intact bone. Postoperative treatment with vitamin D supplementation in this rat fusion model thus effectively reversed detriments in fusion microarchitecture that otherwise would have been seen with continued deficiency.

While histological assessment indicated no clear difference in large bony features with vitamin D status, the morphologic difference between rhBMP-2– and allograft-treated tissues was notable. rhBMP-2 graft regions showed robust fusion in decorticated bone with a thin and porous, yet continuous, cortical bone shell surrounding the newly formed bone mass. A sparse network of trabeculae, infilled with marrow, was contained within fused bone masses. Cortical bone was denser on the spinous process, and trabecular bone was thin or absent within marrow regions. Trabeculae commonly extended directly from the spinous process, where present, to form a continuous bony structure. In contrast, fusions with allograft often included a discontinuous cortical shell and thick trabeculae that were observed to integrate with allograft fragments and extant bone (eg, partially decorticated spinous processes); elsewhere allograft fragments were observed to be surrounded only by dense connective tissue.

The results of serum 25(OH)D analyses indicated that the vitamin D–deficient diet successfully led to very low vitamin D levels, typically less than 5 ng/mL. However, the standard rat chow given to the Sufficient and Rescue groups resulted in vitamin D levels below the range considered sufficient for humans. While serum 25(OH)D values greater than or equal to 30 ng/mL are typically considered to be healthy, the rats in our Sufficient and Rescue groups had mean serum levels of 20.6 and 18.6 ng/mL, respectively, at the conclusion of the study. These values are in the “insufficient” range for humans (20–30 ng/mL). Although these serum levels were significantly higher than those of rats maintained on the vitamin D–deficient diet (4.9 ng/mL), it is possible that greater differences in fusion and microarchitecture outcomes would have been seen if the Sufficient group had achieved vitamin D levels at or above 30 ng/mL. However, it is unclear whether the serum 25(OH)D reference ranges for humans are also applicable for rodents.

To our knowledge, only 1 other study of vitamin D effects in a rat posterolateral fusion model has been published, which compared deficient, insufficient, sufficient, and hypervitaminosis D diet groups at 12 weeks following L4-5 posterolateral fusion using tail autograft.²² While improvements were observed in fusion and bone morphometry in the hypervitaminosis D group, there were no significant differences between the other groups in manual palpation, radiographic fusion, or micro-CT bone morphometry. In comparison, our fusion model included an earlier postoperative time point (6 weeks) and a Rescue group that was converted to a standard vitamin D diet postoperatively. Whereas the prior study did not find differences in bone morphometry between their sufficient and deficient groups,²² we observed diminished bone microarchitecture in Deficient fusion masses. Further, our study showed beneficial effects of the vitamin D diet on the microarchitecture of untreated bone. Our findings are similar to this prior study in that we also observed no differences in manual palpation or micro-CT fusion rates among groups. Together, these findings suggest that future studies of spinal fusion in rodents should be augmented with bone microarchitectural assessment within the fusion mass.

Limitations of this study include a relatively small sample size and the lack of a high–vitamin D diet. A larger sample size would have reduced the variance and led to improved statistical power for all analyses. The standard chow and vitamin D–deficient diets had 1% and 0.47% calcium and 0.7% and 0.3% phosphorus, respectively, and did not control for minerals and nutrients that are important in bone metabolism. We also did not measure circulating levels of calcium or parathyroid hormone. However, our methods are consistent with other studies evaluating dietary modulation of vitamin D,^10,11 which also did not assess parathyroid hormone and calcium levels. Our micro-CT analyses of fusion mass bone morphometry were limited to rhBMP-2–treated levels because allograft-treated levels did not consistently form the bridging bone needed to identify a region of interest. However, given that differences in bone morphometry between vitamin D groups were seen within the rhBMP-2–treated levels, despite the high fusion rate in this group, it is likely that the control allograft-treated fusion masses were similarly influenced by vitamin D deficiency. There is also a theoretical concern for cross-contamination of the rhBMP-2 and allograft treatments across levels. We could have placed a single treatment in each rat to avoid this concern. However, in an effort to judiciously use animals, we chose instead to create 2 separate fascial incisions to contain the 2 treatments in separate compartments within a single animal. We observed little bone formation at allograft levels, which provides evidence that rhBMP-2 did not affect the allograft-treated levels, and thus there is a low likelihood that cross-contamination occurred in this fusion model. Our results are also limited by the histology methods and staining, which did not allow us to distinguish calcified osteoid from unmineralized osteoid. It is possible that vitamin D–sufficient and –deficient levels both had osteoid present, but that the deficient osteoid was not calcified. Future studies of vitamin D deficiency may consider using histological methods that can detect these differences. Lastly, we chose a 6-week follow-up period to assess the early stages of fusion. It is possible that additional differences between groups would have been detected at later time points.
