Correlation Between Modic Changes and Bacterial Infection: A Causative Study

INTRODUCTION

Modic changes (MC) are vertebral end plate and bone marrow signal changes seen on magnetic resonance imaging (MRI). de Roos et al¹ first reported signal changes adjacent to the vertebral end plates visualized by MRI.

Classification

Radiologist Michael Modic and his colleagues^2,3 described and classified MC. The MC are classified into 3 types: type 1, type 2, and type 3. Modic changes type 1 (Figure 1) are seen as areas of high signal intensity on a T2 weighted image (T2WI) and as areas of low signal intensity on a T1 weighted image (T1WI). Modic changes type 2 (Figure 2) are seen as areas of high signal intensity on both T2WI and T1WI. Modic changes type 3 (Figure 3) are seen as areas of low signal intensity on both T2WI and T1WI. Modic changes type 1 contains vascular granulation tissue with inflammatory components, and MC type 2 contains fat replacement of hematopoietic tissue. Modic changes type 3 are rare and represent subchondral bony sclerosis. Miller⁴ classified MC in 4 grades. Grade 0 is normal, grade 1 is similar to MC type 1, grade 2 is similar to MC type 2, and grade 3 is similar to MC type 3. Weishaupt et al⁵ also classified MC into 4 types on the basis of vertebral height involvement. MC type 1 can change over time to type 2 and vice versa.⁶

• Download figure
• Open in new tab
• Download powerpoint

Figure 1

Modic changes type 1 (arrows): (A) Hypointense on T1WI. (B) Hyperintense on T2WI.

• Download figure
• Open in new tab
• Download powerpoint

Figure 2

Modic changes type 2 (arrows): (A) Hyperintense on T1WI. (B) Isointense or hyperintense on T2WI.

• Download figure
• Open in new tab
• Download powerpoint

Figure 3

Modic changes type 3 (arrows): (A) Hypointense on T1WI. (B) Hypointense on T2WI.

MATERIALS AND METHOD

This was a prospective nonrandomized study that involved 20 patients of either sex with ages ranging from 20 to 65 years. The study was conducted at the Department of Orthopaedics, Institute of Medical Sciences, Banaras Hindu University, Varanasi, India.

The inclusion criteria were

• back pain for at least 6 months;

• patients with MC at lumbar spine level on MRI.

The exclusion criteria were

• history of recent viral or bacterial infections (within 6 months);

• past or present history of tumor, trauma, or any surgical intervention in the spine;

• having received epidural steroid injection;

• having undergone previous discectomy at the index level.

From each patient, 5 mL of venous blood were collected under aseptic conditions and sent for complete blood count, erythrocyte sedimentation rate, and quantitative C-reactive protein in their respective vials.

At least 1 mL of intervertebral disc was collected from each patient under aseptic conditions in the operating theater during discectomy and stored in a sterile container containing sterile normal saline. This sample was sent to the Department of Microbiology for PCR study. In the present study we have targeted the conserved gene of the bacteria (ie, 16s ribosomal DNA). We have used a universal eubacteria nested-amplification protocol that may detect quantities as small as picograms of bacterial DNA. For the qualitative variables, Pearson χ² test and Fisher exact test were applied to test for significance. Informed consent was taken from all the patients.

RESULTS

Among the 20 cases of patients who had LBP and MC in MRI, 13.5% showed raised leucocytosis, 28.6% showed raised ESR, and 72.7% showed raised quantitative C-reactive protein. Moreover, 90% of the cases showed presence of bacteria in PCR study. In this study we have found the amplification of the 16s DNA sequence in 90% of the patients having MC along with LBP. When the amplicons (amplified products) from 18 different specimens were subjected to restriction enzyme analysis, EcoR1 yielded 2 bands of equal size in 17 of the samples, whereas 1 had a different banding pattern. This observation suggests that the bacteria amplified might be the same in most cases (Figures 4 and 5).

• Download figure
• Open in new tab
• Download powerpoint

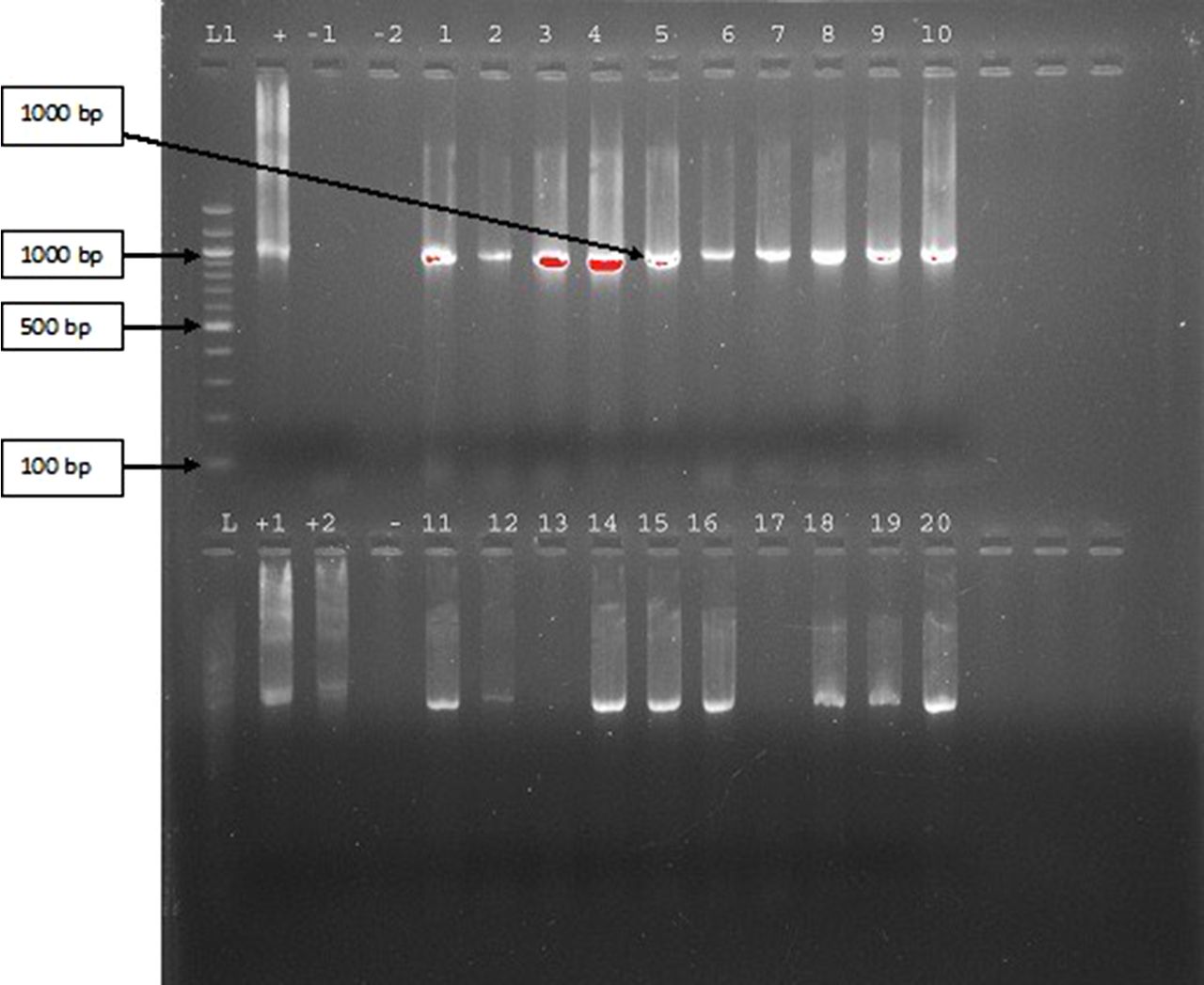

Figure 4

Depicting the 16s amplified DNA products of the 20 samples of intervertebral discs. (Among the 20 samples, sample no. 13 and sample no. 17 did not show the presence of bacterial DNA.)

• Download figure
• Open in new tab
• Download powerpoint

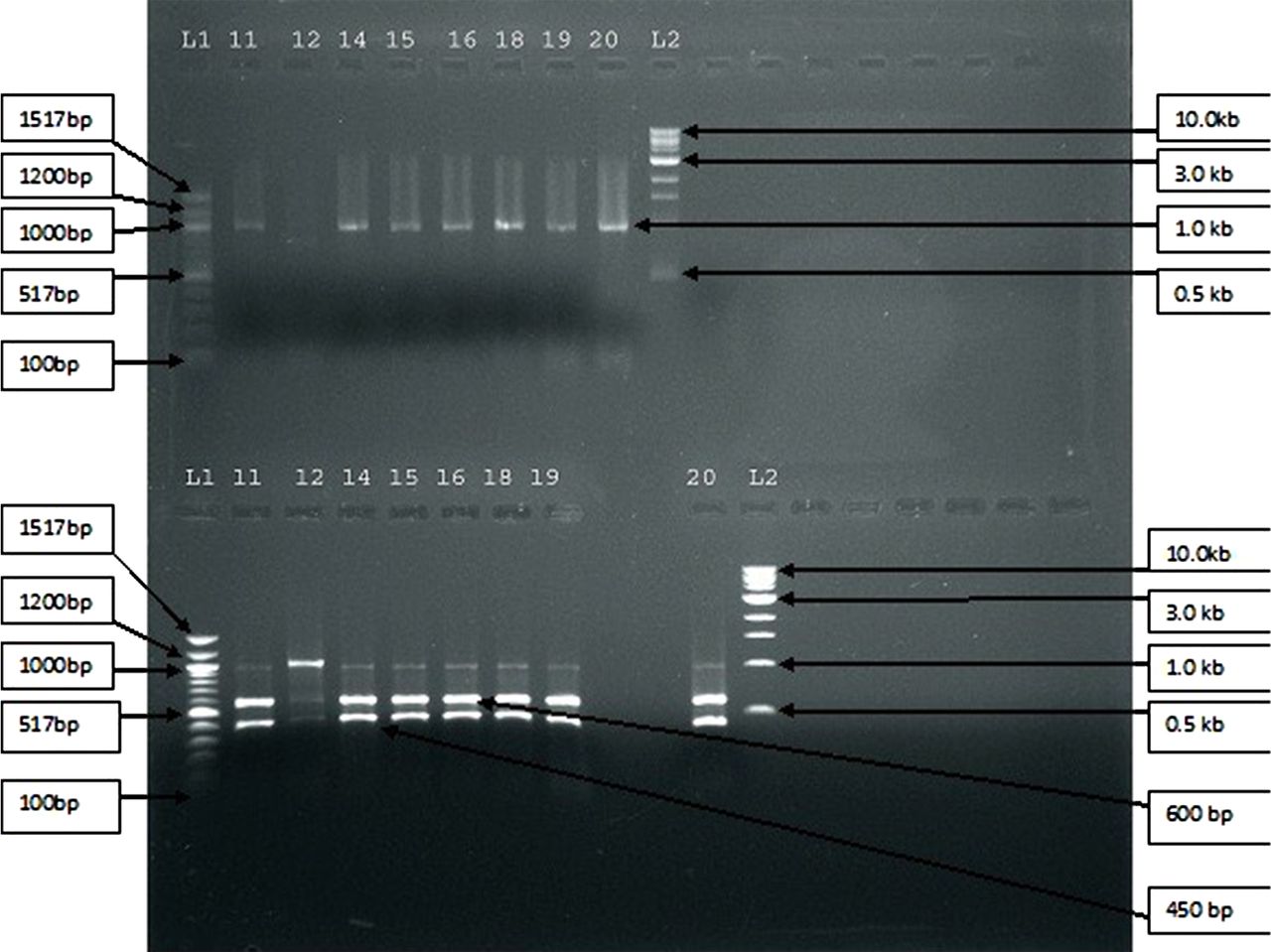

Figure 5

Depicting the restriction analysis of 18 amplicons from 16s amplification. Upper half of the figure represents BamH1 enzyme-digested products and the lower half of the figure represents EcoR1 enzyme-digested products.

DISCUSSION

The basic objective of this study was to know whether bacterial infection is associated with MC. There are few studies that support our findings. In a 2008 study, Albert et al^19,20 claimed that a disc herniation was the entry point of the bacteria and that MC likely were the result of the entry of bacteria, resulting in edema and inflammation surrounding the extruded nuclear material. However, this hypothesis has not been supported up to now. In the Albert et al^19,20 study, 46% of the 61 patients with a lumbar disc herniation were found to have microorganisms present in extruded nuclear tissue. The microorganism most frequently cultured was the anaerobic bacterium Propionibacterium acnes. The discs from which the anaerobic bacteria were isolated were statistically significantly more likely to develop MC than those in which no bacteria or aerobic bacteria were detected (P < .0038). The findings of this study could be interpreted as support for the theory that the occurrence of MC type 1 in the vertebrae adjacent to the previously herniated disc might be the edema surrounding an infected disc. Ohtori et al²¹ in their 2-year follow-up study reported that 4.2% of 71 patients with MC were diagnosed as having pyogenic spondylitis. They too used the culture method to isolate the bacteria. As expected, these 2 culture-based studies detected the presence of bacteria in small proportions. Because our study was based on molecular detection, our bacterial detection rate was quite high. Few other studies also showed that following a breach of the outer annulus fibrous after herniation of the nucleus pulposus, new capillarization occurred around the extruded nucleus pulposus during a short period of time,^22–25 which leads to inflammation and macrophage aggregation.^23–26 Anaerobic bacteria may enter the disc through the breach, causing a low-virulent and slowly developing infection in the disc. Due to the fact that a disc is an avascular structure, it is an ideal environment for the growth of anaerobic bacteria. Albert et al²⁷ and Modic et al²⁸ showed a positive result of antibiotic treatment on MC in 2 small and uncontrolled studies. Aghazadeh et al²⁹ found in their study of 120 patients that the 16s DNA gene was identified in 38.3% of the disc sample.

CONCLUSIONS

Diagnosing patients with LBP with specific anatomical pathological etiology is challenging,³⁰ and because MC are strongly associated with LBP, this study focused on finding an etiological correlation between MC and bacterial infection. After the study, we can conclude that vertebral end plate changes (Modic changes) may have an infective etiology such as bacteria that may have led to a local inflammatory process and raised levels of acute-phase reactants. This local inflammation might have led to vertebral end plate changes that appear in the MRI as MC. Because this is a very small study, a study involving large numbers might be able to resolve the issue more clearly. In our study, the focus was on finding a correlation between MC and bacterial infection by PCR and 16s DNA but not on finding any specific bacteria. If the DNA sequencing data become available and some specific bacteria are found to be associated, that would be more helpful. Amplification of 2 or 3 genes of that particular bacteria in the intervertebral disc from a patient can resolve the issue further. However, it needs further extensive study involving a large number of cases, which might modify the current concepts in the treatment of back pain associated with MC.
