Single and Multilevel Lumbar Total Disc Replacement Adjacent to L5-S1 ALIF (Lumbar Hybrid): 6 Years of Follow-up

INTRODUCTION

Fusion has long been considered the surgical treatment of choice for intractable back pain associated with disc degeneration. The clinical success of arthrodesis is thought to depend upon eliminating the painful motion between spinal segments by achieving bony healing between adjacent vertebral bodies. Over the years, great effort has been directed toward developing and refining surgical techniques intended to achieve improved rates of solid fusion in the hopes of improving clinical outcomes.

Unfortunately, despite advances in surgical technique and implant design, fusion rates continue to be far from perfect. Pseudoarthrosis remains a significant contributor to reoperation and ultimately poor outcomes after attempted fusion surgery, with a large meta-analysis of 47 publications on lumbar arthrodesis reporting an overall pseudoarthrosis rate of 14%.¹

Perhaps more importantly, adjacent level degeneration has been identified as a major source of long-term morbidity associated with fusion procedures, with a large percentage of patients developing symptoms even after fusions considered to be successful initially.^2–5 Penta et al found 32% of patients had adjacent level degenerative changes on magnetic resonance imaging 10 years after anterior lumbar interbody fusion.³ Kumar et al identified disc space narrowing in 36% of patients and osteophyte formation in 43% of patients 30 years after one- or two-level lumbar arthrodesis.⁴ Similarly, Ghiselli et al recorded symptomatic adjacent level disease in 36% of patients at 10-year follow-up.⁵

Total disc replacement (TDR) has been introduced with the goal of treating painful disc degeneration while maintaining motion and, at the same time, reducing the incidence of fusion-related morbidities. Disc arthroplasty procedures, through maintenance of motion, are not subject to pseudoarthrosis. But perhaps the most significant potential advantage of these motion-preserving procedures is the decrease or elimination of adjacent level degeneration by decreasing the transmission of damaging stress to adjacent segments.

The radiographic and clinical success of disc arthroplasty has been well documented for one-level disc degeneration, with randomized controlled studies demonstrating superior results at 2-year⁶ and 5-year^7–9 follow-up. High success rates have been reported at greater than 10 years after disc arthroplasty.¹⁰ Biomechanical studies have indicated that disc replacement procedures not only maintain motion at operative levels but also do not seem to cause abnormal motion or stress at adjacent levels.¹¹ A systematic review of the available literature by Harrop et al found a strong correlation between fusion and the development of adjacent segment degeneration when compared with disc arthroplasty.¹² Zigler et al recently reported a significantly lower rate of adjacent segment degeneration at 5 years after disc arthroplasty than after fusion.^8,13

Patients very commonly present with disc degeneration at multiple levels. Similar to one-level disc replacement, recent studies have reported encouraging results with multilevel disc arthroplasty procedures with 2 to 6 years follow-up.^14–16

Unfortunately, a number of patients present with multilevel disc degeneration of varying severity. These patients are suitable candidates for disc arthroplasty at some levels but have either severe disc degeneration or other pathology that makes disc replacement contraindicated at other levels. Bertagnoli et al has demonstrated disc arthroplasty to be efficacious for treating symptomatic disc degeneration above a previous fusion.^14,17 Chen et al reported equal or better clinical outcomes following the lumbar hybrid construct than ALIF alone.¹⁸ Scott-Young et al have recently reported outcomes of a large series of patients undergoing a single-level artificial disc replacement and an anterior fusion procedure simultaneously at an adjacent level.¹⁹

The present study was designed to present the radiographic and clinical outcomes of a group of patients undergoing a “hybrid” procedure involving one, two, or three simultaneous lumbar artificial disc replacements above an arthrodesis at the L5-S1 level.

METHODS

Forty-six consecutive patients underwent lumbar TDR using ProDisc-L (Synthes Spine, Westchester, PA) at one or more levels simultaneously with anterior lumbar interbody fusion (ALIF) using an InFix (Abbott Spine, Austin, TX) stand-alone cage. All 46 patients had ALIF procedures at the L5-S1 level augmented with rhBMP-2 (InFuse, Medtronic Sofamor Danek, Memphis, TN). Twenty-three patients had one-level TDR at L4-5, 19 patients had two-level TDR at L3-4 and L4-5, and 4 patients had three-level TDR at L2-3, L3-4, and L4-5. Patients were evaluated clinically and radiographically at their initial preoperative visit as well as at 3 months, 6 months, 12 months, and annually postoperatively. Indication for surgery was low back pain with or without radiculopathic pain in the setting of disc herniation or significant disc degeneration. The L5-S1 level was fused if there was significant facet arthropathy, and thus arthroplasty was not indicated.

Oswestry disability index (ODI), visual analog score for pain (VAS-P), and visual analog score for satisfaction (VAS-S) data were also collected at each follow-up interval. Along with the surveys, patients were also asked whether they would choose to undergo the surgery again. Each visit also included an evaluation of nerve tension signs (straight-leg and femoral stretch test), sensation to light touch, lower extremity motor strength, and patellar and Achilles reflexes.

Radiographic examination included lateral flexion and extension films from which sagittal motion was measured at all operative levels as well as adjacent nonoperative levels. Segmental range of motion (ROM) was obtained by calculating the difference between segmental lordosis at flexion and extension using the “spike method” previously described.⁵ Measurements were performed using a precision digital goniometer with resolution of 0.1° (Macklanburg-Duncan Electronic Digital Protractor, Oklahoma City, OK). Every film was analyzed independently by 3 experienced spine surgeons. Each radiograph was measured twice by the same observer, yielding 6 measurements per radiograph.

For statistical analysis, patients were grouped according to the number of adjacent prosthetic discs received: TDR-1, TDR-2, or TDR-3. Mean and standard deviation were calculated for numerical values derived from the ODI, VAS-P, and VAS-S. Statistical significance for differences between final postoperative and original preoperative values and for differences in outcomes between groups according to numbers of discs replaced were determined by analysis of variance.

Segmental ROM values at a given operative level (eg, L4-L5) within a group (eg, TDR-3) were averaged and compared with the mean preoperative ROM at that level. The mean postoperative segmental ROM at a given level in a given group was also compared with the ROM of that same level in the other groups (ROM of L4-L5 in TDR-1 versus that in TDR-2 versus TDR-3). Statistical significance for differences between pre- and postoperative ROM at a given level and between ROM of a given level across the various groups were obtained using the Student t test. As for the ROM for the adjacent segment (not undergoing TDR), postoperative values in each grouping were averaged and compared with the mean preoperative ROM values. For all comparisons, P values less than .05 were deemed significant.

RESULTS

At all levels undergoing TDR, the mean preoperative ROM was 10.4 ± 2.4°. Following arthroplasty with ProDisc-L, the mean postoperative ROM was 12.6 ± 1.1° (P = .011). No significant difference was found in postoperative ROM at TDR levels when comparing patients undergoing one-, two-, or three-level TDR (P > .05 for all comparisons between groups). At the L5-S1 level, the mean preoperative ROM was 2.4 ± 2.2°. Following ALIF with the InFix cage, the mean postoperative ROM at final follow-up (2–6 years) was 0.0° (P > .05). All patients were clinically and radiographically determined to have solid fusion at L5-S1 at latest follow-up. At the level directly adjacent to TDR, the mean preoperative ROM was 9.4 ± 1.8°. Following surgery at caudal levels, ROM at the adjacent level was 10.5 ± 2.3° (P = .21) (Figure 1).

• Download figure
• Open in new tab
• Download powerpoint

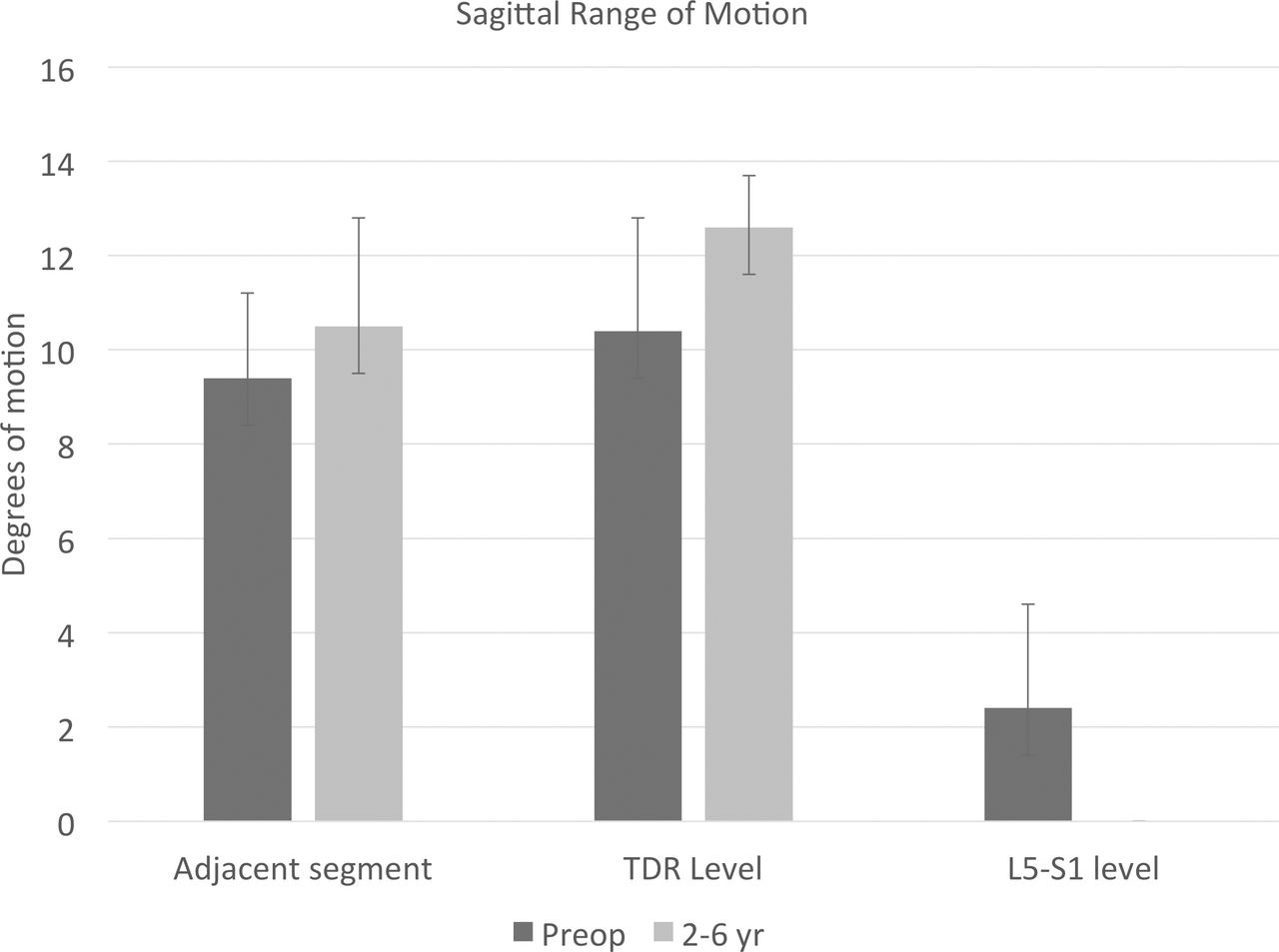

Figure 1

Radiographic motion (degrees) measured on the lateral view of flexion and extension radiographs preoperative and at last follow-up. Comparison between the L5-S1 fusion level, the total disc replacement, and adjacent level. Error bars are standard deviation. TDR, total disc replacement, one, two, or three signifies levels replaced above the L5-S1 fused level.

There were no significant differences in the baseline preoperative ODI score according to number of levels to be operated: TDR-1 = 43.2 points, TDR-2 = 42.8 points, TDR-3 = 39.4 (P > .05). All groups exhibited statistically significant progressive improvement in ODI relative to preoperative levels. For the TDR-1 patients, there was an average 42.0% improvement at 6 weeks and 46.0% at 72 months. TDR-2 patients had an average improvement of 38.0% at 6 weeks and 40.0% at 24 months. For the TDR-3 patients, there was an average 18.0% improvement at 6 weeks and 38.6% at 24 months. These between-group differences did not achieve statistical significance (P > .05 for all three comparisons) (Figure 2).

• Download figure
• Open in new tab
• Download powerpoint

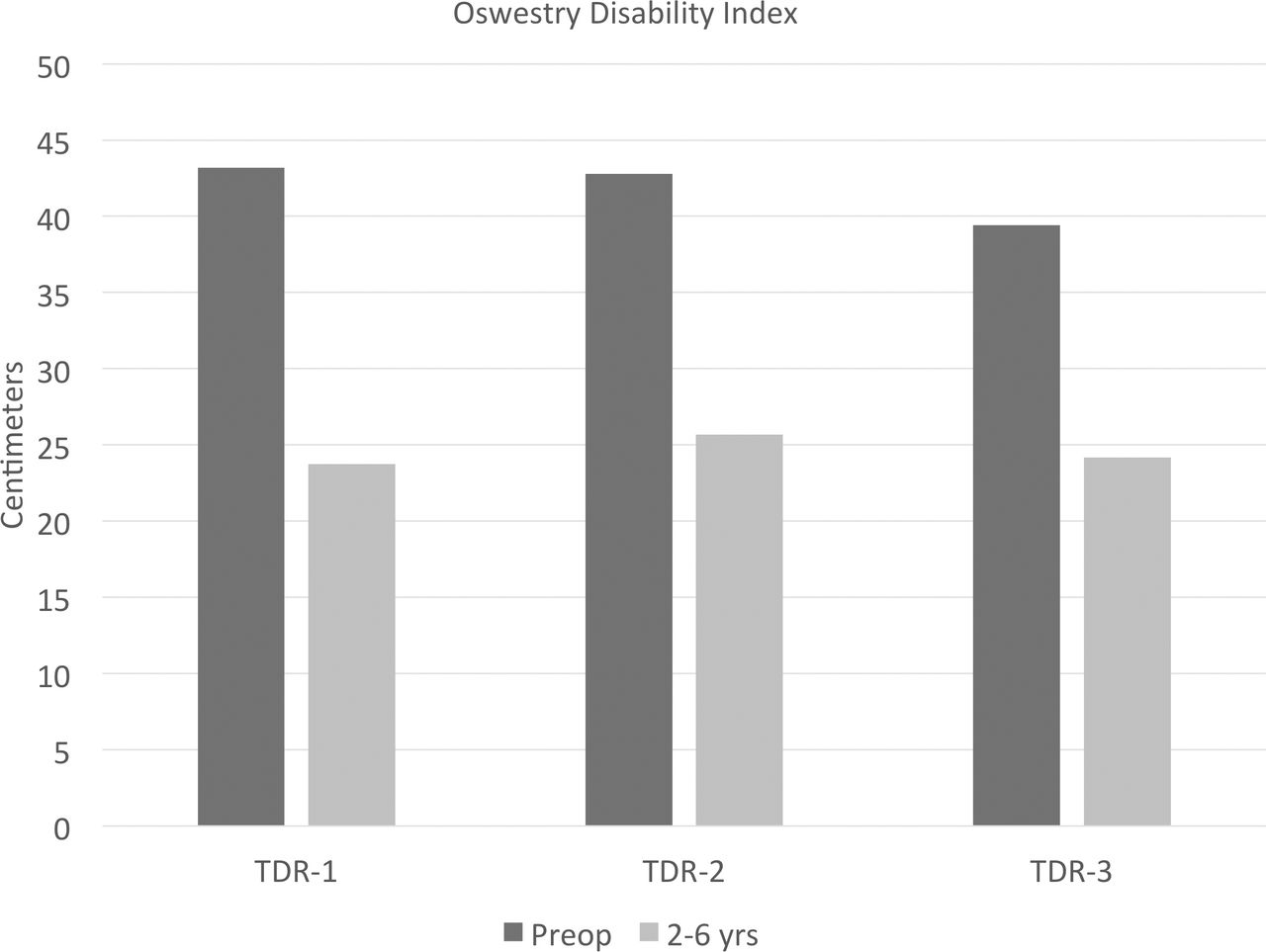

Figure 2

Average Oswestry disability index before surgery and at the latest follow-up period in patients receiving one-, two-, or three-level TDR above the L5-S1 fused level.

There were no significant differences among the groups in preoperative VAS-P scores: 6.7 for TDR-1, 8.0 for TDR-2, and 7.6 for TDR-3 (P = .22). All groups showed improvement in reported pain relative to preoperative levels. TDR-1 values improved by an average of 51.0% at 6 weeks and 53.0% at 72 months (compared with preoperative values). TDR-2 values improved by an average of 43.0% at 6 weeks and 58.0% at 24 months. TDR-3 values improved by an average of 48% at 6 weeks and 55.0% at 24 months. For each group, all differences between preoperative and postoperative scores were statistically significant (P < .001). In group-to-group comparison, the differences in final improvement did not reach statistical significance (P > .50 for each comparison) (Figure 3).

• Download figure
• Open in new tab
• Download powerpoint

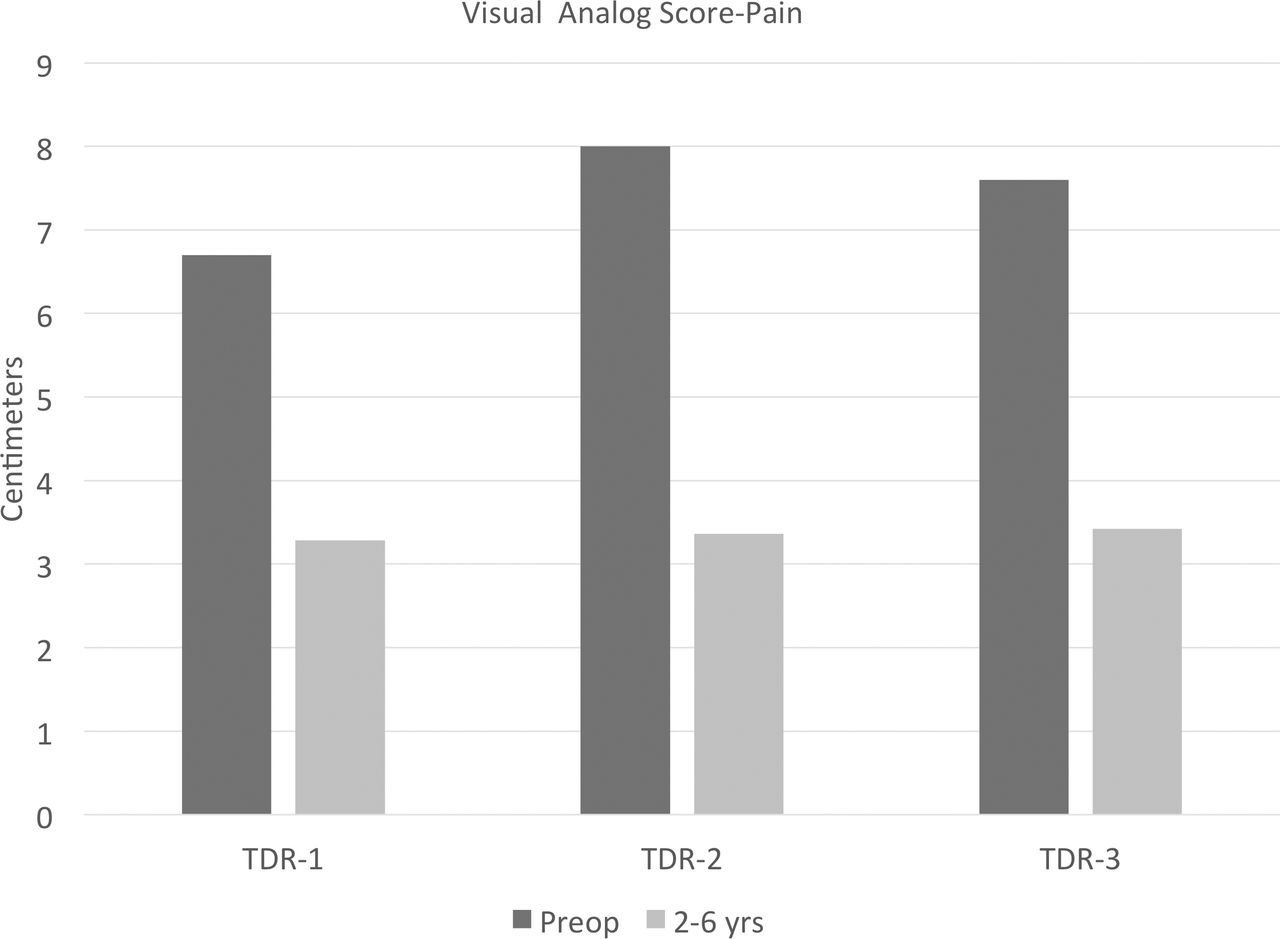

Figure 3

Visual analog pain score before surgery and at the latest follow-up period in patients receiving one-, two-, or three-level TDR above the L5-S1 fused level.

The average VAS-S scores ranged from 8.6 cm at 6 weeks to 8.4 cm at 72 months in the TDR-1 group, from 7.6 cm at 6 weeks to 7.5 cm at 24 months in the TDR-2 group, and from 8.30 cm at 6 weeks to 8.20 cm at 24 months in the TDR-3 group. The stated improvement in satisfaction at 24–72 months was similar across all three groups (P > .50 for differences between the groups). The differences between final endpoint and 6-week scores were statistically insignificant (P > .05 for all three comparisons) (Figure 4). All patients responded positively to the question “Would you undergo this surgery again?” at each time point at which it was asked. See Figures 5 and 6 for examples of preoperative magnetic resonance imaging and postoperative radiographs following two- and three-level TDR above L5-S1 ALIF.

• Download figure
• Open in new tab
• Download powerpoint

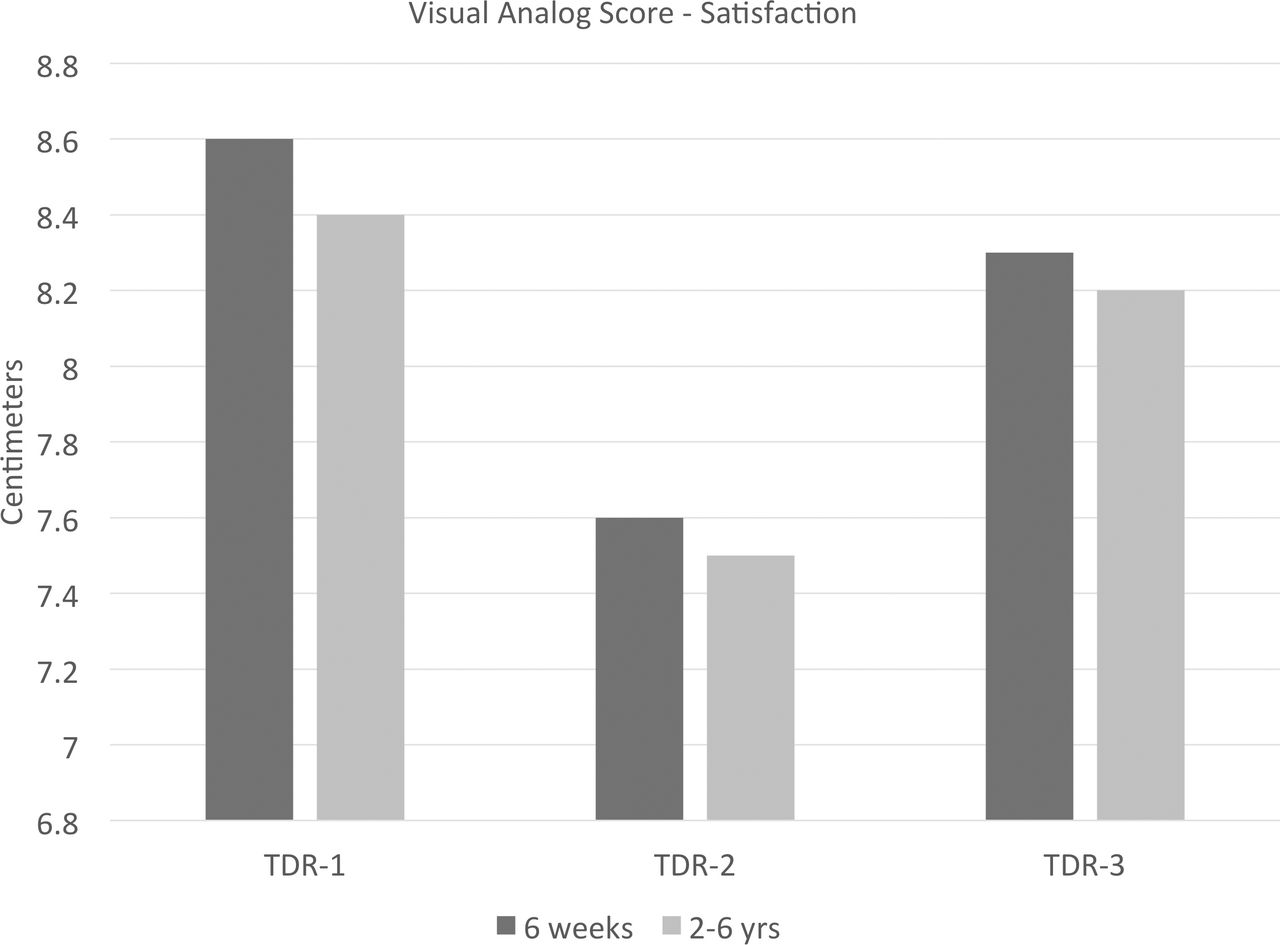

Figure 4

Visual analog satisfaction score before surgery and at the latest follow-up period in patients receiving one-, two-, or three-level TDR above the L5-S1 fused level.

• Download figure
• Open in new tab
• Download powerpoint

Figure 5

(a) Preoperative sagittal magnetic resonance image cut (left) and postoperative anterior-posterior radiograph (right) in a patient that underwent a three-level total disc replacement above an L5-S1 anterior lumbar interbody fusion. (b) Postoperative flexion (left) and extension (right) lateral radiographs in the same patient as in panel a.

• Download figure
• Open in new tab
• Download powerpoint

Figure 6

(a) Preoperative sagittal magnetic resonance image cut (left) and postoperative anterior-posterior radiograph (right) in a patient that underwent a two-level total disc replacement above an L5-S1 anterior lumbar interbody fusion. (b) Postoperative flexion (left) and extension (right) lateral radiographs in the same patient as in panel a.

This cohort of patients did not experience any major postoperative complications, including deep venous thrombosis, pulmonary embolism, wound infections, or hematomas requiring reoperation or drainage. None of the patients required reoperation for any reason nor were any device failures identified during the follow-up period.

DISCUSSION

Previous literature has demonstrated lumbar TDR to be successful both radiographically, in terms of maintaining ROM at operative levels, and also clinically, with regard to pain relief and overall patient satisfaction.⁵ The majority of the published research to date has involved single-level TDR, but recent studies have shown similar favorable results with multilevel lumbar TDR.^15–17

The “hybrid” construct, involving a combination of motion preserving disc arthroplasty adjacent to a traditional fusion, was initially described by Bertagnoli et al.¹⁴ Subsequently, Bertagnoli et al¹⁷ provided 2-year follow-up data on a group of patients who underwent artificial disc replacement for degenerative disc disease adjacent to a previous fusion. Scott-Young et al recently published a large series of 617 patients that underwent the lumbar hybrid procedure at L4-5 and L5-S1.¹⁹ The authors observed long-term sustained pain relief at 8 years postoperation.

The purpose of this study was to present the radiographic and functional outcomes of a cohort of patients presenting with multilevel lumbar degenerative disc disease who underwent a hybrid procedure involving the simultaneous placement of TDR at multiple levels adjacent to an ALIF at L5-S1.

There are several important findings associated with this group of patients. It has now been demonstrated in numerous studies that spinal segments adjacent to a fusion experience increased stress, leading to accelerated disc degeneration.^2–5 One of the most important potential advantages of disc arthroplasty is the prevention of this abnormal stress and possible elimination of adjacent segment degeneration. A study by Huang et al has shown a clear relationship between motion of disc arthroplasty and the development of adjacent segment degeneration with over 8 years follow-up,²⁰ and Zigler et al have reported lower rates 5 years after lumbar disc arthroplasty than after fusion.⁸ Patients with motion 5° or greater at the level adjacent to disc arthroplasty showed 0% prevalence of degeneration, while those with motion less than 5° had a 34% prevalence of adjacent level disease.²⁰ Our cohort of hybrid patients demonstrated a mean postoperative ROM at TDR levels of 12.6°, which should represent adequate motion to reduce the risk of adjacent segment degeneration. Similarly, our patients demonstrated a postoperative ROM of 10.5° at adjacent levels compared with 9.4° at the preoperative evaluation, indicating that a physiologic ROM was maintained after the hybrid procedure.

Another key finding of this study involves the successful rate of fusion at the L5-S1 spinal level within the hybrid construct. We obtained a solid fusion in all 46 patients, both clinically and radiographically. No pseudoarthroses were identified, and postoperative ROM at the L5-S1 level remained at 0.00°. This clearly demonstrates that the hybrid construct permits successful fusion at desired levels without interference from retained motion at adjacent level disc replacement. Conversely, all levels treated with disc replacement demonstrated excellent maintenance of ROM in the presence of simultaneous attempted fusion at L5-S1.

CONCLUSION

Lumbar artificial disc replacement can successfully be performed at multiple levels with an ALIF during the same procedure. Postoperative ROM at TDR levels within a hybrid construct was similar to that found with TDR used alone with excellent maintenance of physiologic motion. Combining disc arthroplasty with fusion at adjacent segments did not adversely impact the desired outcome at either TDR levels or fusion levels. Most importantly, the hybrid construct results in the preservation of normal motion at nonoperative adjacent levels, potentially decreasing the development of adjacent segment degeneration.
