Abstract
Background Although anterior cervical decompression and fusion (ACDF) can be performed using minimally invasive techniques, the extensive removal of anatomical keystones during decompression requires a segmental fusion to restore biomechanical stability. Treatment with arthrodesis techniques may result in a prolonged recovery time, loss of motion, and the need for further treatment if a pseudarthosis or adjacent segment disease occur. Transcorporeal micro decompression (TCMD) is a newly developed motion sparing, minimally invasive anterior cervical spine decompression procedure that utilizes a small channel through the cervical vertebral body to decompress areas of central or foraminal stenosis while preserving the native disc. Cervical decompression with TCMD can be performed as a stand-alone or hybrid procedure with ACDF at the adjacent levels. This study retrospectively assesses patient based clinical outcome measures in patients treated with TCMD.
Methods A retrospective, non-randomized, single-center chart review of single surgeon experience with patients undergoing TCMD both with and without adjacent level ACDF using both a trajectory control guide and access channel repair. Statistical analyses were performed on pre and post-operative data collected using visual analog scale (VAS) and neck disability index (NDI) outcome measures.
Results Among 62 patients, there were no cases of neurovascular injury, CSF leak, transfusion, or migration of repair implement. Revision surgery was required in 6.4% (n=4) patients. A subanalysis of outcome metrics was performed for patients that underwent standalone TCMD (TCMD group, n=42) and TCMD with concurrent ACDF at one or more levels (TCMD+ACDF group, n=20). TCMD group NDI improved from 20.0 to 2.7 at 1 year (p=0.0001); Axial VAS improved from 5.5 to 0.6 (p=0.0001); and Radiating VAS improved from 7.0 to 0.7 (p=0.0001). TCMD+ACDF group NDI improved from 22.0 to 4.0 at 1 year (p=0.004); Axial VAS improved from 7.1 to 1.2 (p=0.01); and Radiating VAS trended towards significant improvement from 6.4 to 2.3 (p=0.09). Mean return to work was 10 days in the TCMD group and 57 days in the TCMD+ACDF group.
Conclusions Within the limits of a retrospective, single-surgeon study, patients did experience both functional improvement and pain relief as measured by NDI and VAS respectively from standalone TCMD or combined ACDF / TCMD procedures. Definitive statements on long-term efficacy, disc space preservation, and motion preservation await further study.
Introduction
Stenosis secondary to cervical spondylosis or an acute focal cervical disc herniation can manifest clinically as a combination of axial neck pain, cervical radiculopathy and myelopathy.1 There are two purposed mechanisms to explain these clinical sequele. First, mechanical compression of the exiting nerve root, either by a soft disc herniation or a disc-osteophyte complex, acts to increase the permeability of intrinsic nerve root blood vessels. This leads to nerve root edema, an increased neurologic response threshold, and ultimately an amplified sensitivity to pain signals.2, 3 Secondly, chemical mediators released from the pathologic disc fragment (bradykinin, serotonin, histamine, prostaglandins, leukotrienes) as well as from the compressed nerve root (substance P, somatostatin, VIP) provoke and perpetuate a dysregulated inflammatory response.4 Surgical decompression of neurovascular structures is indicated if there is progressive neurologic decompensation or if non-operative modalities fail to adequately improve the patient's quality of life.
Anterior cervical decompression and fusion (ACDF) is a well-established procedure to treat severe degenerative conditions and focal disc herniation of the cervical spine.5–8 Although ACDF can be performed using minimally invasive techniques, the extensive removal of anatomical keystones during decompression requires a segmental fusion to restore biomechanical stability. Treatment with arthrodesis techniques may result in a prolonged recovery time, loss of motion, and the need for further treatment if adjacent level disease or a pseudarthosis develop.9 Posterior decompression only techniques such as laminectomy or laminoplasty preserve the adjacent level and eliminate the risk of pseudarthrosis but increase the risk of post-operative instability or kyphotic deformity secondary to extensive dissection of the posterior cervical paraspinal musculature and often times does not adequately decompress anterior pathologies.10, 11
Transcorporeal micro decompression (TCMD) is a newly developed motion sparing, minimally invasive cervical spine decompression procedure. TCMD utilizes an anterior approach to channel through the cervical vertebral body and access the disc pathology. This technique allows the surgeon to decompress areas of central or foraminal stenosis while preserving the native disc and posterior stabilizing musculature of the cervical spine. Cervical decompression with TCMD can be performed as a stand-alone or hybrid procedure with an ACDF at the adjacent levels. Patients presenting with cervical radiculopathy secondary to an isolated soft disc herniation are ideal candidates for standalone TCMD. Simultaneous TCMD with adjacent level ACDF is used to address symptomatic pathology such as a soft disc herniation with spondylotic myelopathy at other levels. This study retrospectively assesses perioperative outcomes as well as patient based clinical outcome measures after either a standalone TCMD, or TCMD with concomitant ACDF performed at the adjacent level.
Methods
A retrospective, non-randomized, single-center chart review was conducted for a series of patients that underwent a standalone TCMD procedure using both a trajectory control guide and access channel repair (Beta-tricalcium phosphate+local autograft; TransCorp Spine, Byron Center, Michigan, USA), or TCMD with concomitant adjacent level ACDF. All procedures were performed by a single surgeon who had already overcome the initial procedural learning curve (DL). Following Institutional Review Board approval, pre-operative patient demographics (age, gender, BMI, diagnosis, previous spine surgeries, Visual Analog Scale (VAS) for axial neck and arm pain, Neck Disability Index (NDI) score, worker's compensation claim status, co-morbidities) were collected through the chart review. Operative and peri-operative data were obtained from available operative reports and hospital discharge summaries by an on-site research coordinator. Post-operative complication rate, VAS neck and arm pain score, NDI, time until return to employment and reoperation rate were also obtained through chart review. All data were electronically collected and patient information was de-identified prior to analysis by an independent clinical research organization.
Data were segmented for analysis based on age (<50 years versus ≥50 years), procedure (TCMD versus TCMD with adjacent level ACDF), gender, primary indication, number of operative levels, previous cervical surgery, pre-operative VAS and NDI, and co-morbidity. Data are reported as means ± SD. Statistical analyses were performed via either a one-way ANOVA or paired t-tests. Statistical analysis of complication rate was performed using the chi-squared method with Yate's correlation. Significance is defined as p<0.05.
TCMD Procedure
After administration of a general anesthetic, the patient is positioned supine with a rolled towel under the interscapular region. The incision is made at a level which permits a direct line of site through the intended oblique trajectory of the guide, which is generally similar to where an incision would be placed if doing an ACDF one segment farther cranially. Once the spine is visualized and levels are confirmed fluoroscopically, the midline is marked at the disc space above and below the target vertebral body, and both midline in the sagittal plane and midplane in the axial plane are identified fluoroscopically, when possible given patient body habitus. The trajectory control device is then oriented with respect to midline and midplane, tamped into position on the anterior surface of the vertebral body, and then secured in position using a single anchoring pin. Positioning is confirmed fluoroscopically when possible. A hand operated drill with variable depth settings is used to penetrate the vertebral body in the desired trajectory to a depth of no more than 3 mm less than the AP diameter of the vertebral body at midplane as measured on pre-op studies. (The autograft from the hand drill is preserved for subsequent channel repair.) The trajectory is obliquely oriented caudally and laterally to permit access to the anterior aspect of the foramen while also preserving the uncovertebral joint. Hemostasis of the cancellous bone is achieved by passing a hemostatic agent through the trajectory control guide. After removal of the control guide, the last 3 mm of bone is removed using a high speed bur. The epidural plane is then entered in the superomedial quadrant of the access channel by first using a disc-shaped microdissector. The area of exposed dura is enlarged using Kerrison rongeurs. Osteophytes are removed using the burr and Kerrisons while herniated disc material is removed using standard microsurgial dissecting instruments. The adequacy of the decompression is verified both visually and by feel using a 90-degree ball tip dissector. The access channel is repaired by using a beta-tricalcium phosphate implant filled with the locally harvested autograft preserved from the hand drill (Figure 1, Figure 2). Prior to placing the implant, a reamer is used to prepare the channel. After fluoroscopically verifying implant positioning and achieving hemostasis, the incision is closed.

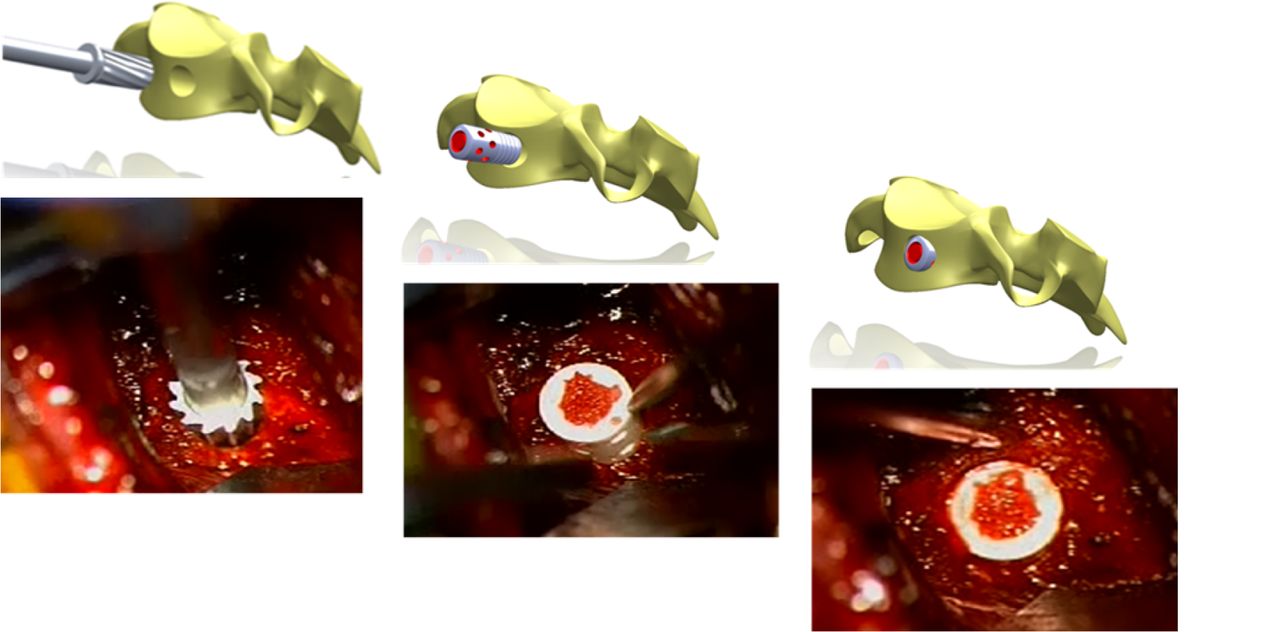

Illustration of the stepwise process of a channel repair implant that is filled with beta-tricalcium phosphate and local autograft.
Access channel demonstrates ossification at 12 weeks postoperation.
Results
Sixty-two patients (22 female, 40 male) with a mean age of 50.6 years (range: 30-71 years) at the time of surgery were included in the study. The primary surgical indications were degenerative disc disease with stenosis (DDD, n=37/62, 60%), or acute disc herniation (HNP, n=25/62, 40%). Five patients had undergone previous cervical spine surgery (2 anterior cervical fusion, 3 posterior decompression). Zero patients were treated under pending litigation or a Worker's Compensation claim. A standalone TCMD was performed in 42/62 patients and 20/62 patients underwent a combined TCMD with adjacent level anterior cervical discectomy and fusion procedure (TCMD+ACDF) at one or more levels (Table 1).
Patient demographics.
Median hospital admission time was 1 day (range 0-3 days) in the TCMD+ACDF group and 1 day (range 0-2 days) in the standalone TCMD group. Forty-three percent (18/42) of standalone TCMD patients were discharged home on the day of surgery. Zero patients required a peri-operative blood transfusion and there were no cases of neurovascular injury, CSF leak, or migration of repair implement reported within 90 days of operation. However, revision surgery was required in 6.4% (n=4/62) patients during the follow up period. Revision rate was not significantly higher in the standalone TCMD group (n=2/42) than in the TCMD+ACDF group (n=2/18, χ2 p>0.05). Mean return to work duration was shorter in the TCMD group (10 days, n=42, p=0.0001) than in the TCMD+ACDF group (59 days, n=12) (Figure 3).

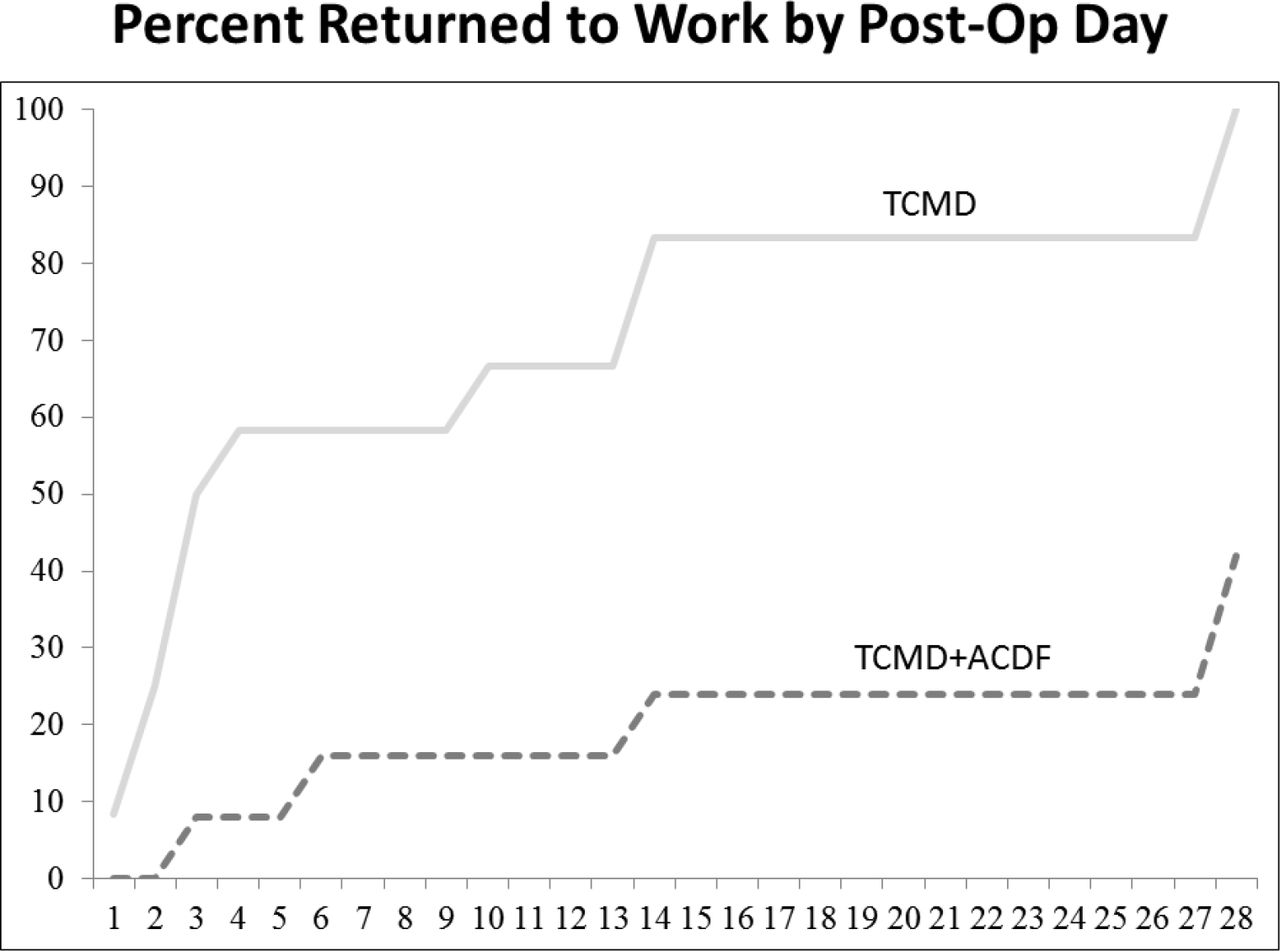

Mean return to work duration was shorter in the TCMD than in the TCMD+ACDF group. All patients in the TCMD group returned to work by post-op day 60 and all patients in the TCMD+ACDF group returned to work by post-op day 120.
TCMD group NDI improved from 20.0 ± 10.4 to 6.5 ± 8.1 at 1 month (n=41, p=0.0001); Axial VAS improved from 5.5 ± 3.1 to 1.6 ± 2.1 (n=42, p=0.0001); and Radiating VAS improved from 7.0 ± 2.4 to 1.2 ± 2.0 (n=41, p=0.0001). At 1 year post-op, the TCMD group NDI improved from 20.0 ± 10.4 to 2.7 ± 3.9 (n=22, p=0.0001); Axial VAS improved from 5.5 ± 3.1 to 0.6 ± 0.8 (n=22, p=0.0001); and Radiating VAS improved from 7.0 ± 2.4 to 0.7 ± 1.4 (n=22, p=0.0001). The TCMD+ACDF group NDI improved from 22.0 ± 11 to 15.3 ± 9.3 at 1 month (n=18, p=0.05); Axial VAS improved from 7.1 ± 2.1 to 2.4 ± 2.1 (n=18, p=0.0001); and Radiating VAS improved from 6.4 ± 2.9 to 2.3 ± 2.2 (n=18, p=0.0001). At one year post-op, the TCMD+ACDF group NDI improved from 22.0 ± 11 to 4.0 ± 3.5 (n=7, p=0.004); Axial VAS improved from 7.1 ± 2.1 to 1.2 ± 1.0 (n=7, p=0.01); and Radiating VAS trended towards significant improvement from 6.4 ± 2.9 to 2.3 ± 3.2 (n=7, p=0.09) (Table 2). There was not a significant difference in outcome measures between groups when the data was stratified based on patient age, sex, number of levels treated and specific level treated (p>0.05).
Patient based outcome measures for the standalone TCMD group and TCMD+ACDF group.
Discussion
Within the limits of a single center retrospective review, the results of this study demonstrate that TCMD is a safe and effective minimally invasive surgical option to treat cervical spondylosis with radiculopathy or acute cervical disc herniation. There were no major complications reported and no cases that required a peri-operative blood transfusion. Overall length of hospital stay compares favorably to previous studies of cervical decompression procedures.12, 13
Patients in the standalone TCMD group were able to achieve a level of function necessary to return to work significantly faster than those treated with TCMD+ACDF. However, both standalone TCMD as well as TCMD with concomitant adjacent level ACDF groups reported significant improvement in pain scores and functional outcome as early as one month post-op that continued until the 1 year post-operative clinical follow up visit.
There are several advantages to implementing a transcorporeal microdecompression with concomitant adjacent level ACDF over a multilevel cervical fusion in cases of severe multilevel deformity. TCMD eliminates the risks of postoperative instrumentation failure or pseudoarthosis at the TCMD level and requires a less extensive dissection than ACDF to reach the surgical target. Additionally, limiting the extension of arthrodesis preserves an additional native motion segment which can protect against adjacent level degenerative changes. Prasarn et al. conducted one of the few studies in the literature on adjacent level biomechanics after single versus multilevel cervical spine fusion.14 These authors demonstrated that extension of a single level fusion to a two-level fusion in a cadaveric model system increased sagittal range of motion and stress forces at the motion segment adjacent to the arthrodesis. In light of these findings, performing a motion preserving TCMD procedure together with ACDF in cases of multilevel pathology will likely reduce the rate of adjacent level hypermobility and accelerated degeneration.
While motion was preserved at the one year post-op mark for all patients who have reached that point, a limitation of our study is that long-term efficacy, disc space maintenance and motion preservation were not studied. Several previous studies have confirmed that arthrodesis of a cervical motion segment leads to increased stress, load, and intradiscal pressures at the level adjacent to the fusion construct.15–19 Such forces likely accelerate degenerative changes in levels adjacent to arthrodesis which could lead to clinical deterioration necessitating further intervention. Hilibrand and Robbins followed 374 patients over a period of 10 years after ACDF and found that symptomatic adjacent level disease developed at a rate of 2.9% per year.20 Anterior transcorporeal decompression techniques are designed to remove anterior pathologic compressive fragments while limiting disruption of the native disc and bony stabilizers of the cervical spine.21 The clinical impact of preserving the native anatomical architecture during TCMD procedures should be investigated in future dedicated studies of long term functional and radiographic outcomes. Future studies will also compare the clinical outcome of standalone TCMD versus standalone ACDF procedures to better appreciate the best indications for each respective procedure.
Disclosures
Conflicts of Interest and Source of Funding: Milestone Research Organization was hired as the clinical research organization to conduct the study. This entity was compensated to conduct the study, analyze results and author the manuscript.
