Radiographic Measures of Spinal Alignment Are Not Predictive of the Development of C5 Palsy Following Anterior Cervical Discectomy and Fusion Surgery

INTRODUCTION

Anterior cervical decompression and fusion (ACDF) is an effective treatment for cervical radiculopathy and myelopathy.^1–3 Although felt to be more common following posterior cervical decompression,^1,4–7 postoperative C5 palsy has been reported to occur in as many as 4%–7% of ACDF cases.^1–3,5,8 Although several radiographic risk factors for the development of a postoperative C5 palsy have been identified, including, among others, excessive posterior cord drift,^2,5,9 magnitude of change in overall cervical alignment,² and increases in C4–C5 intervertebral height,² no consensus has emerged on its etiology, and the cause is likely multifactorial.^2,3 Additionally, the majority of literature on postoperative C5 palsy has been studied in the context of posterior-based procedures; the risks factors for the development of C5 palsy following ACDF surgery have been much less thoroughly studied.^2,8 Although most patients experience a full recovery within 6 months, C5 palsy is still physically and mentally debilitating for those who experience it.^2,8 The primary purpose of this retrospective series patient cohort review was to assess the rate of C5 palsy following ACDF and to determine whether any radiographic or demographic parameters were predictive of its development.

MATERIALS AND METHODS

Patient Selection and Inclusion Criteria

Patient demographic, surgical, and radiographic data were reviewed, including preoperative and postoperative motor examination results and preoperative and postoperative radiographs. Two hundred and twenty-six patients who underwent ACDF from September 2015 to September 2016 were reviewed in this retrospective, single institution, multisurgeon series patient cohort. Patients were excluded if they underwent concomitant posterior surgery or corpectomy, if no postoperative motor strength was documented, or if radiographs were inadequate for accurate measurement. One hundred and twenty-two patients were included in the final analysis (Figure 1). The average age of the sample was 59.7 years, and 45.1% were female. The study was approved by our institutional review board.

• Download figure
• Open in new tab
• Download powerpoint

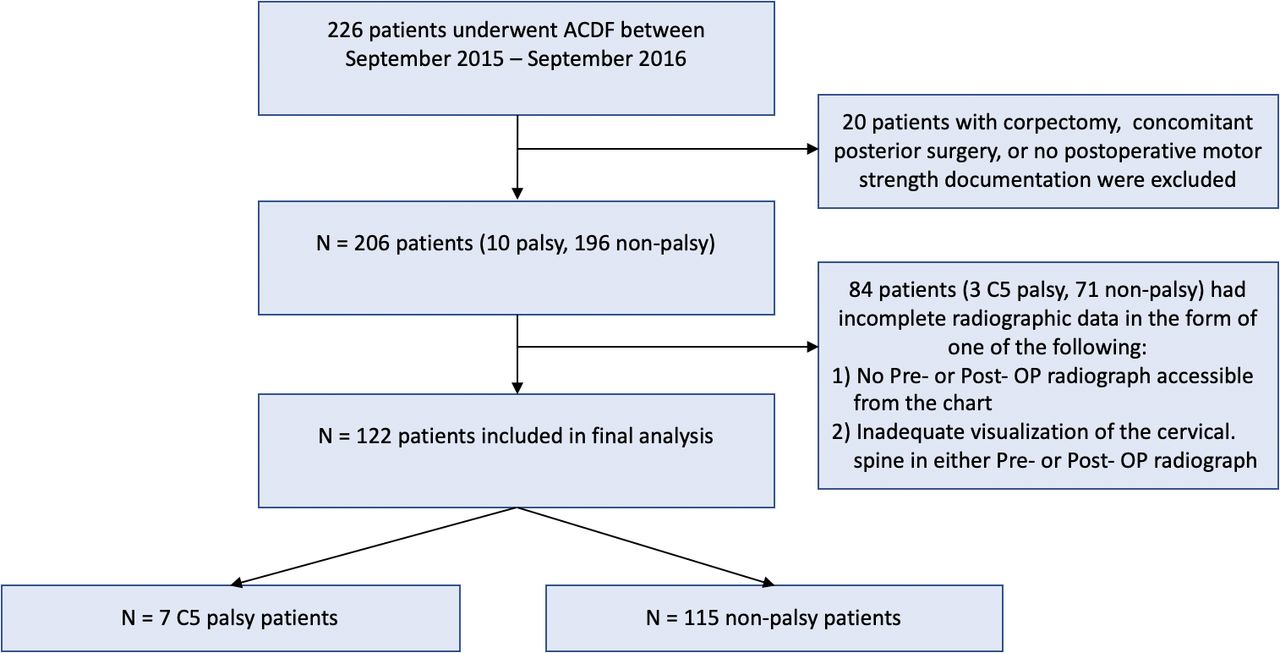

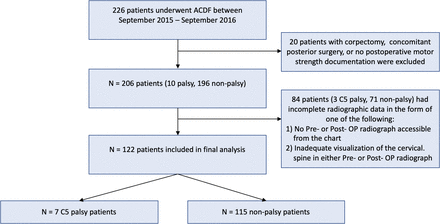

Figure 1

Algorithm describing patient exclusion criteria for analysis. Out of 226 patients who underwent anterior cervical decompression and fusion, 122 were ultimately included in our analysis.

Outcome Measures

The primary outcome measure was the development of a C5 palsy, defined as a decrease of at least 1 motor grade in deltoid and/or biceps brachii muscle function in the immediate postoperative period. Preoperative and immediate postoperative radiographs were reviewed to determine whether any parameters influenced the development of a C5 palsy. Preoperative and postoperative radiographs were defined as the first sets of radiographic data available before surgery and after surgery, respectively. The radiographic parameters measured included local Cobb angle (Figure 2B), C2–C7 Cobb angle (Figure 2A), C2–C7 sagittal vertical axis (SVA) (Figure 2C), segment vertebral height (Figure 2D), and C2–C7 cervical height (Figure 2E).

• Download figure
• Open in new tab
• Download powerpoint

Figure 2

The C2–C7 Cobb angle is defined by the angle made by the intersection of 2 lines, 1 going through the inferior endplate of C2 and the other going through the inferior end plate of C7 (A). The local Cobb angle (B) is defined by the angle made by 2 lines, 1 line going through the superior end plate of the top vertebral level and the other going through the inferior end plate of the bottom vertebral level being considered in the anterior cervical decompression and fusion. For both the C2–C7 and the local Cobb angle, lordotic angles are considered to be positive. The sagittal vertical axis (C) is the length of a perpendicular line drawn between a line drawn vertically down from the center of the dens and a line drawn vertically down from the inferior posterior end plate of C7. Vertebral segment height (D) is defined as the length of a line between the superior posterior end plate of the superior vertebrae and the inferior posterior end plate of the inferior vertebrae being considered. The C2–C7 cervical height (E) is the length of a line drawn between the inferior posterior end plate of C2 to the inferior posterior end plate of C7.

RESULTS

DISCUSSION

In this multisurgeon, single-institution retrospective review, no statistically significant demographic or radiographic parameters were identified that were predictive of C5 palsy development. The small size of the C5 palsy group (7 patients) made establishing radiographic and demographic risk factors problematic. Although a trend for decreased local Cobb angle (P = .059) and increased postoperative SVA (P = .075) exists, we found that it did not reach statistical significance.

ACDF surgery has become the mainstay of treatment for many cervical degenerative diseases.^2,3,5,8 Despite being relatively safe and producing a generally favorable outcome, C5 palsy is still a relatively common complication of cervical decompression surgery.^1–3 Considerable literature exists on C5 palsy risk factors for posterior-based cervical decompression, and many risk factors have been identified.³ By comparison, there is scant literature on predictive factors for the development of C5 palsy in ACDF surgery.^2,8 This is problematic because ACDF surgery is a more common surgical procedure than posterior-based approaches,² and postoperative complications are less common following ACDF surgery.^1,4,6,7 It is important that the predictive risk factors for C5 palsy following ACDF surgery be more closely studied in the future, especially in light of the common application of anterior-based cervical decompression techniques.

The risk factors for C5 palsy following posterior-based surgical approaches may be different than those following anterior-based approaches because the postoperative changes in the vertebrae and spinal cord are not comparable.^2,3,5,8 For example, although the spinal cord shifts posteriorly postoperatively in posterior-based procedures (and increased posterior shift of the spinal cord is a known risk factor for C5 palsy), the spinal cord has been shown to generally shift anteriorly following ACDF surgery.^5,8

Although the existing literature for C5 palsy risk factors is considerably less robust for ACDF surgery, a few significant findings have been elucidated.^2,3,5,8,11 Several groups have shown that smaller C4–C5 intervertebral foramen diameter is associated with increased C5 palsy risk following ACDF surgery.^2,5 Increases in postoperative cervical lordosis (using measures analogous to global and local Cobb angle) are also associated with higher risk of C5 palsy.^2,8 Although the purpose of ACDF surgery is to provide decompression of the spinal cord and nerve roots, larger (>15 mm) posterior decompression troughs, as well as asymmetric decompression width postoperatively (between the left and right side of the vertebrae), have been reported as risk factors for the development of C5 palsy.^2,5 In 1 study, patients who developed C5 palsy had less anterior shift of the spinal cord postoperatively than the nonpalsy group.⁵ Finally, although we found no statistical differences in our ACDF surgery patient data set, increased vertebral segment height postoperatively has been found to be a risk factor for the development of C5 palsy.²

The etiology of C5 nerve palsy following ACDF is poorly understood, and there are many prevalent theories in the field.^1,2,9 Studies using cadavers have shown that the ventral rootlets of the C5 nerve are shorter and exit the intervertebral foramen at a more obtuse angle, potentially making the C5 nerve roots particularly susceptible to iatrogenic injury.^9,12–14 One theory suggests that it is direct injury from the surgical instruments that lead to palsy development.^2,9,15 However, in spite of technical advances in surgical technique, the rates of postoperative C5 palsy have not significantly changed in ACDF and posterior-based surgical procedures.^2,15 Additionally, a few groups have theorized that acute decompression results in spinal cord lesions that ultimately lead to the C5 palsy.^18–20 Whatever the causative factors are, given the lack of clear predictive risk factors, the etiology of C5 palsy following ACDF surgery is likely multifactorial.

There is currently no standard treatment for C5 palsy, although C5 palsy most often resolves on its own spontaneously.^3,10,12 While the long-term outcome is generally favorable, the short-term disability from the loss of upper limb functionality is often debilitating.²¹ If patients do seek treatment, physical therapy, pain management, and other conservative methods are most commonly used.¹²

It is worth mentioning that all the literature we could identify that studied predictive factors for C5 palsy development following ACDF surgery included patients who underwent corpectomy. This is important because surgical decompressive procedures that incorporate corpectomy and/or that are posterior based are known to be associated with higher risk of C5 palsy development.^3,4,17 Since corpectomy and posterior-based surgeries were part of our exclusion criteria, the existing literature on ACDF surgery uses patient data sets that are not necessarily analogous to our data set.

Potential limitations of this study include the small size of the C5 palsy group (7 patients), which increases the likelihood of false-negative findings. Additionally, this was a retrospective analysis, so we were limited by the demographic and radiographic data we could access. Eighty-four patients in our data set were excluded from formal analysis because radiographic data could not be obtained. Finally, since the C5 palsy group is defined as a decline in function of deltoid and/or biceps brachii function, we were inherently limited by surgeon sensitivity to detect these deficits during postoperative follow-up.

CONCLUSIONS

In this single-institution series, we identified a 5.7% postoperative C5 palsy rate following ACDF surgery. Although some have suggested that certain radiographic parameters can predict the development of C5 palsy, in our series, we could not identify any radiographic parameters that were associated with increased risk, including changes in overall cervical or local cervical alignment.
