Possible Correlation Between Kyphosis of Lumbar Osteoporosis Fractures and the Spinal Signal Intensity Ratio (SSIR)

INTRODUCTION

Although traumatic vertebral body fractures occurring in different age groups are associated with high energy trauma or fall from significant height, osteoporotic vertebral body fractures usually take place after low energy impact for patients older than 60 years.^1–4 Within the group of osteoporosis-associated fractures, vertebral body injuries represent the largest portion.⁵ Due to the currently high and increasing incidence, unpredictable outcome as well as demographic changes favoring this type of fractures, osteoporotic fractures remain an important public and clinical health issue.⁶ Furthermore, the rate of osteoporotic vertebral body fractures increases with age.^4,7 Several factors influence the decision in regard to surgical or conservative therapy.^7,8 Controversy persists at this point,⁹ but regarding fractures associated with osteoporosis, there is a tendency for authors recommending operative treatment¹⁰ based on localization, pain level, and fracture classification. Gonschorek et al⁸ report unstable fractures such as types A4, B, and C to treat fractures surgically. Schnake et al¹¹ recommended a new classification and a point system for decision-making in osteoporotic fracture care based on the initial images. Yang et al¹² in 2016 report faster pain relief, better functional results, and fewer complications with vertebroplastic treatment of painful osteoporosis fractures.

Moreover, progressive vertebral kyphosis leads to significantly more complications than simple chronic pain. In addition to postural damage, a reduction in lung function and possibly gastrointestinal malfunction may occur in certain cases.^13,14

At the moment, the stability of a simple impression of 1 or both endplates cannot be predicted, hence multiple plain radiographs are necessary to detect further collapse of osteoporotic vertebral body fractures.¹⁵

To distinguish fresh from old fractures, regular use of magnetic resonance imaging (MRI) is recommended.^8,16–19 Furthermore, studies have shown, obtaining preoperative MRI images for old patients requiring surgery can lead to changes to the surgical plan in up to 60% of the cases due to edema in adjacent vertebral bodies or missing edema in vertebral bodies, which seemed to be fractured in plain x-ray or computed tomography scan.¹⁸

Corresponding to the signal weighting in the MRI, even in the absence of height loss, bone edema is already evident as an indication of damage to the trabecular structure.¹⁹

However, a precise index has not been described so far. With the help of the cerebrospinal fluid (CSF) as a reference value, we suggest relating the measured edema signal intensity as a reference. According to the work of Luoma et al^20,21 and Smith et al,²² the signal intensity of the CSF can be assumed to be constant, largely regardless of its chemical composition.

Therefore, from the authors' point of view, the CSF is well suited as a largely unchangeable reference to determine the quantity of vertebral bone edema. Calculating the spinal signal intensity ratio (SSIR) by dividing the edema intensity in the fractured vertebra, with the intensity of the spinal fluid, the probability of vertebral collapse can be estimated.

Applying this SSIR could help the surgeon to make a statement about its tendency to collapse or angulate further.

If a valid correlation is found here, it facilitates to predict the probability of a secondary collapse reaching a conclusion to advise an operative or nonoperative therapy. On the other hand, radiation exposure for retrospectively unnecessary follow-up could be avoided.

MATERIALS AND METHODS

A retrospective evaluation based on pseudonymized data was carried out for this study. In the period between 2013 and 2015, every patient with a vertebral body fracture in the thoracic or lumbar spine after trauma, who was treated in a tertiary Spine Center due to existing osteoporosis, was included in the study. The patients were subjected to protocols corresponding to everyday clinical practice. No additional x-ray or MRI examinations were arranged for the study.

At first, the MRI signal intensity for CSF and in the vertebral body with bone edema was measured using a radiology software (Impax V6.5 Agfa, Brentford, UK), so we could calculate the SSIR by dividing the edema intensity in the fractured vertebra, with the intensity of the spinal fluid in T1 and T2 as well as separate target illumination radar (STIR) series. In follow-up examination, the patients were re-evaluated 2 times via x-ray, and the amount of collapse and focal kyphotic angle of the affected vertebral bodies was documented.

The decision for operative or conservative care was made according to the customary and internationally recognized standards.

RESULTS

Demographic Data

Overall, the data from 44 patients could be extracted in the period from January 2013 to September 2015. Due to a moderate compliancy, data histories could not be obtained without gaps for all parameters. We examined 9 male and 35 female patients. Of these, 32 were smokers and 7 were nonsmokers. In 5 patients it was unclear. The age span was almost normally distributed between 50 and 90 years old (Figure 1). Follow-up with radiological controls as well as the final examination occurred after 1 to 48 months (mean, 18.18 months) after trauma.

• Download figure
• Open in new tab
• Download powerpoint

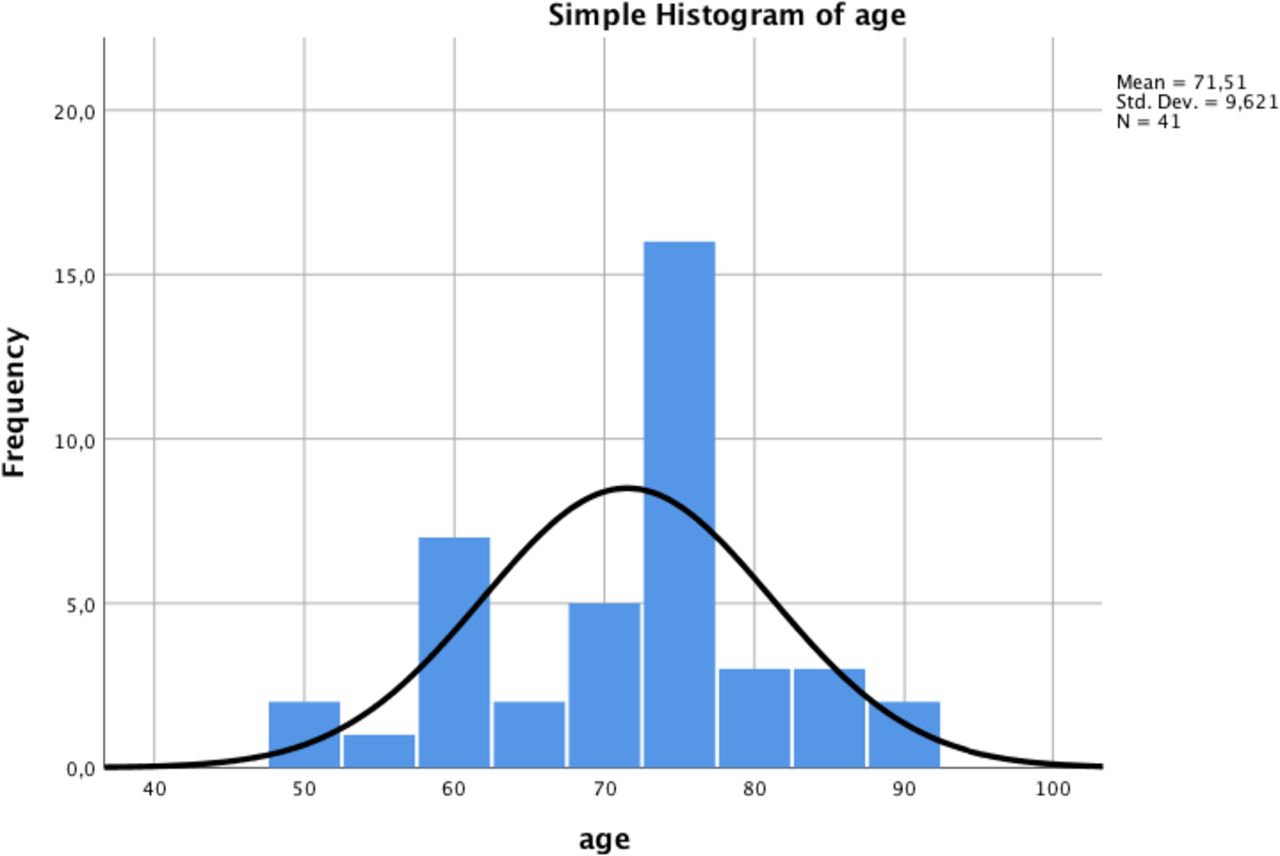

Figure 1

Distribution of age.

Correlation Analysis

The graphic correlation for the T2 weighting and for the STIR weighting is plotted in Figures 2 and 3. For both weightings shown, a correlation between the increase in the values for the actual quotient and the kyphotic tendency in the follow-up can be seen.

• Download figure
• Open in new tab
• Download powerpoint

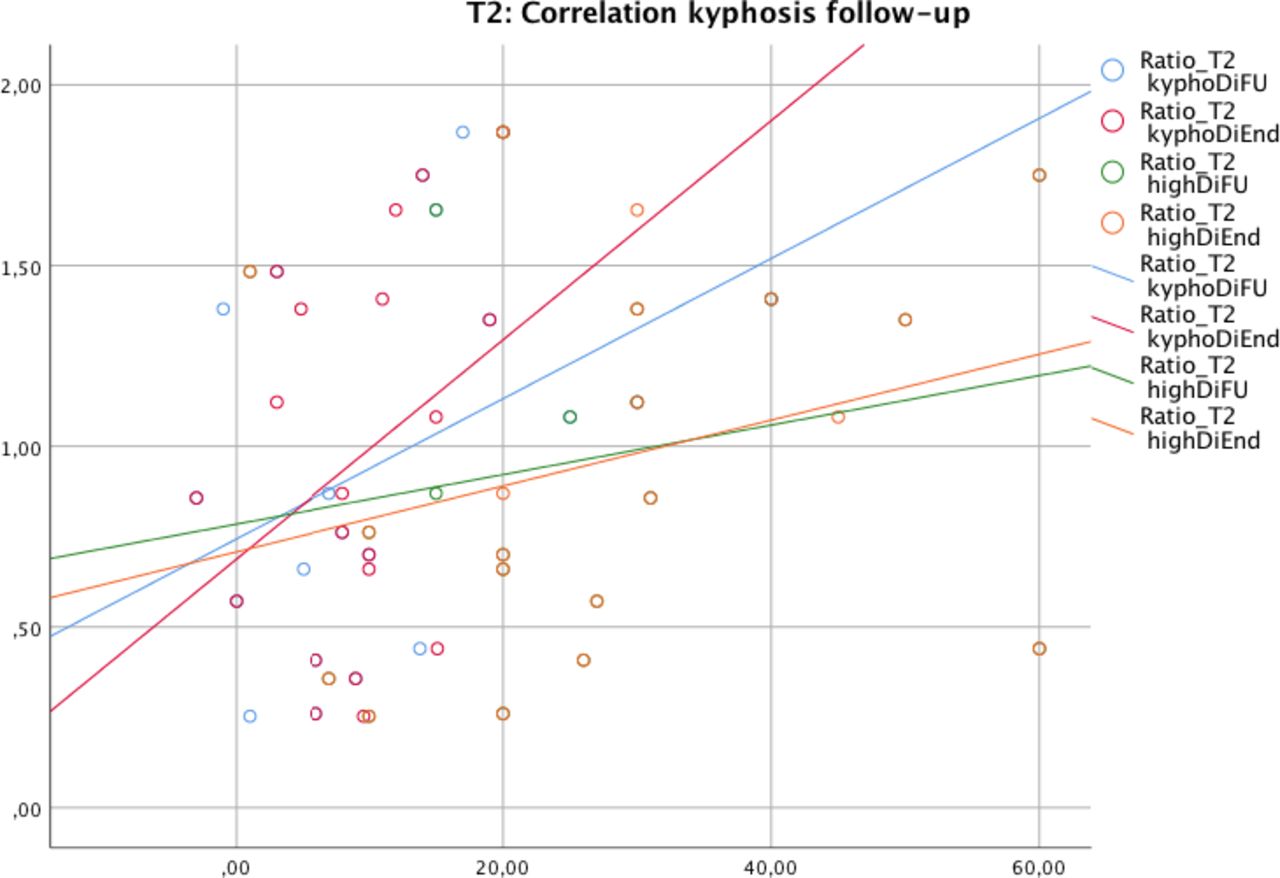

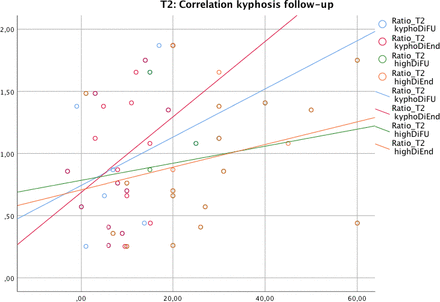

Figure 2

Correlation of SR (T2) to kyphosis progression until follow-up end and height reduction until follow-up end.

• Download figure
• Open in new tab
• Download powerpoint

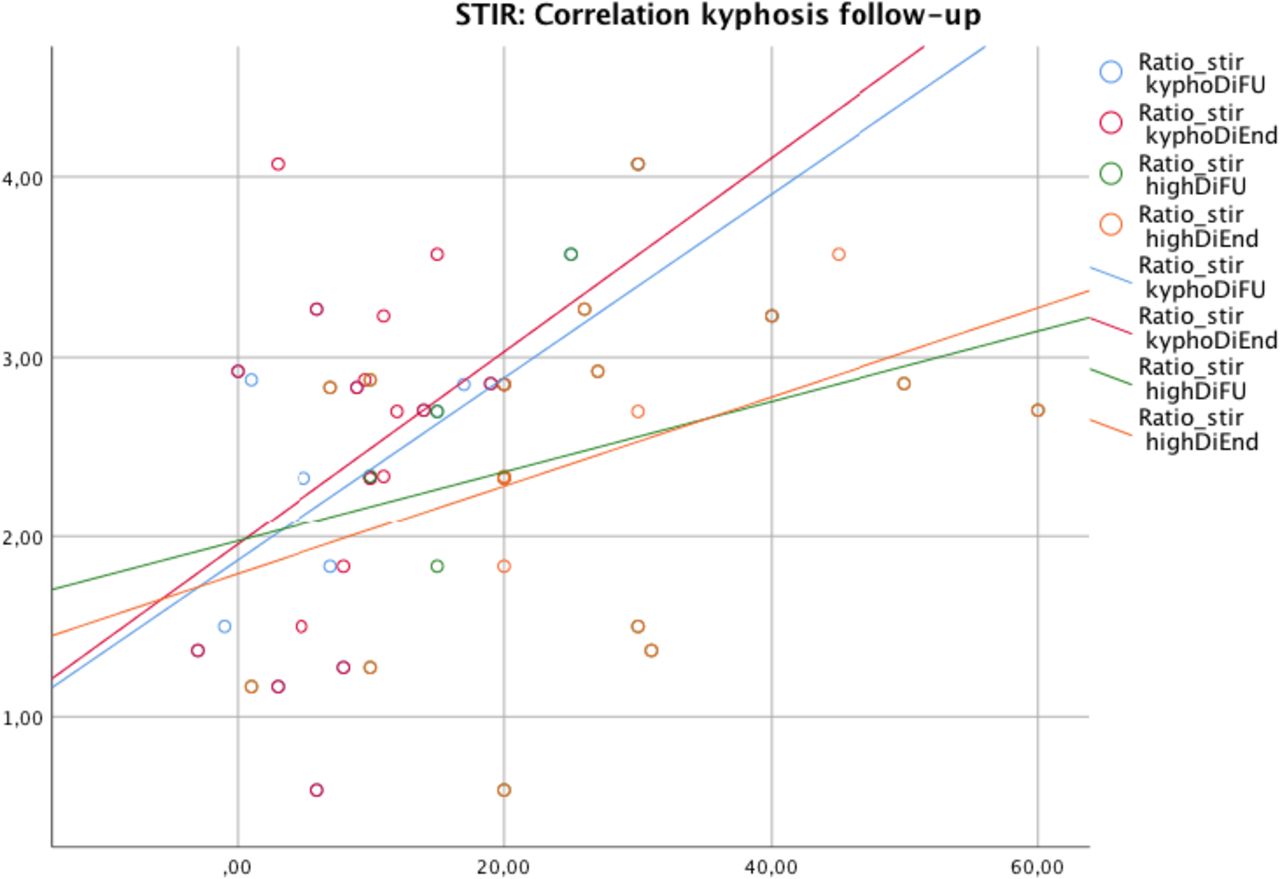

Figure 3

Correlation of SR (STIR) to kyphosis progression till follow-up end and of height reduction till follow-up end.

Linear Regression Analysis

We found a significant relationship for the ratios in the STIR weighting and the T2 weighting with respect to the change in the kyphosis angle at the time of follow-up with P = .002 (SD ± 2.664) for the STIR weighting and P = 0.001 (SD ± 1.616) for the T2 weighting. R² shows at 0.565 that the model might explain the variances at the time of follow-up. At the time of the final examination, the results of the STIR-weighted measurements for the kyphosis angle remain significant (P = .017; SD ± 1.360). The T2-weighted measurements are not significantly correlated from the time of the final examination (P = .146; SD ± 2.016).

The height reduction results for both STIR and T2 measurements are not significant: P = .688 (SD ± 4.310) for STIR, respectively 0.125 (SD ± 6.210) for T2 in follow-up; P = .457 (SD ± 3.206) in STIR, respectively 0.325 (SD ± 4.664) in T2 in the final examination (Table 2).

View this table:

• View inline
• View popup
• Download powerpoint

Table 2

Findings of regression analysis: P values and R² of progress in kyphosis and height reduction.

Progressive kyphosis also remains significant under the STIR weighting until final examination (P = .017; SD ± 1.360). On average to the end of the follow-up, group 3 shows an increase of kyphosis by 7.75° (SD ± 2.15; Figure 4) and the associated group 4 even an average of kyphosis by 10.63° (SD ± 1.58; Figure 5).

• Download figure
• Open in new tab
• Download powerpoint

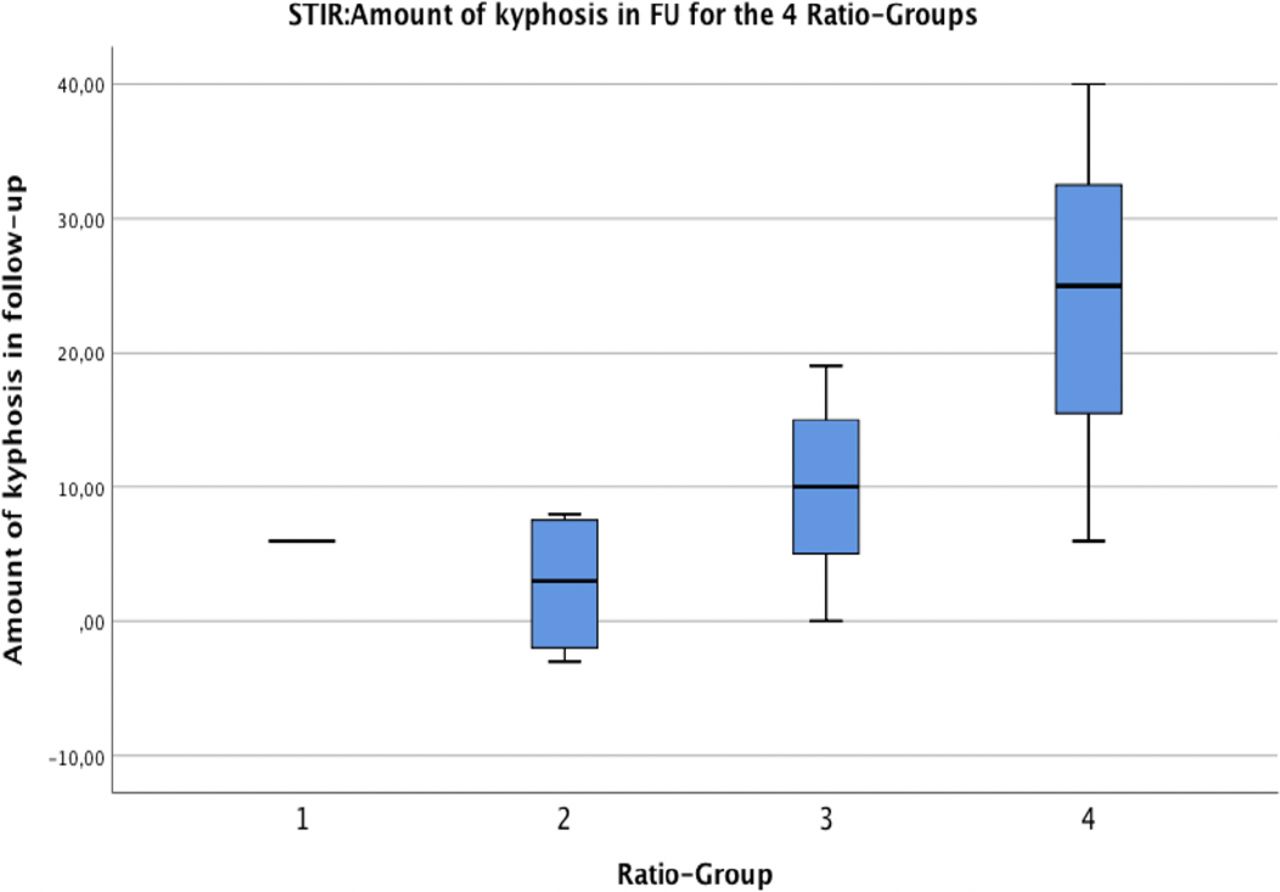

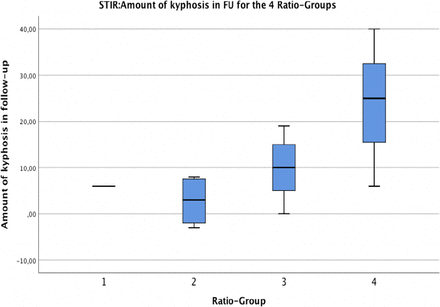

Figure 4

Boxplot SR-STIR for kyphosis follow-up divided in the 4 groups.

• Download figure
• Open in new tab
• Download powerpoint

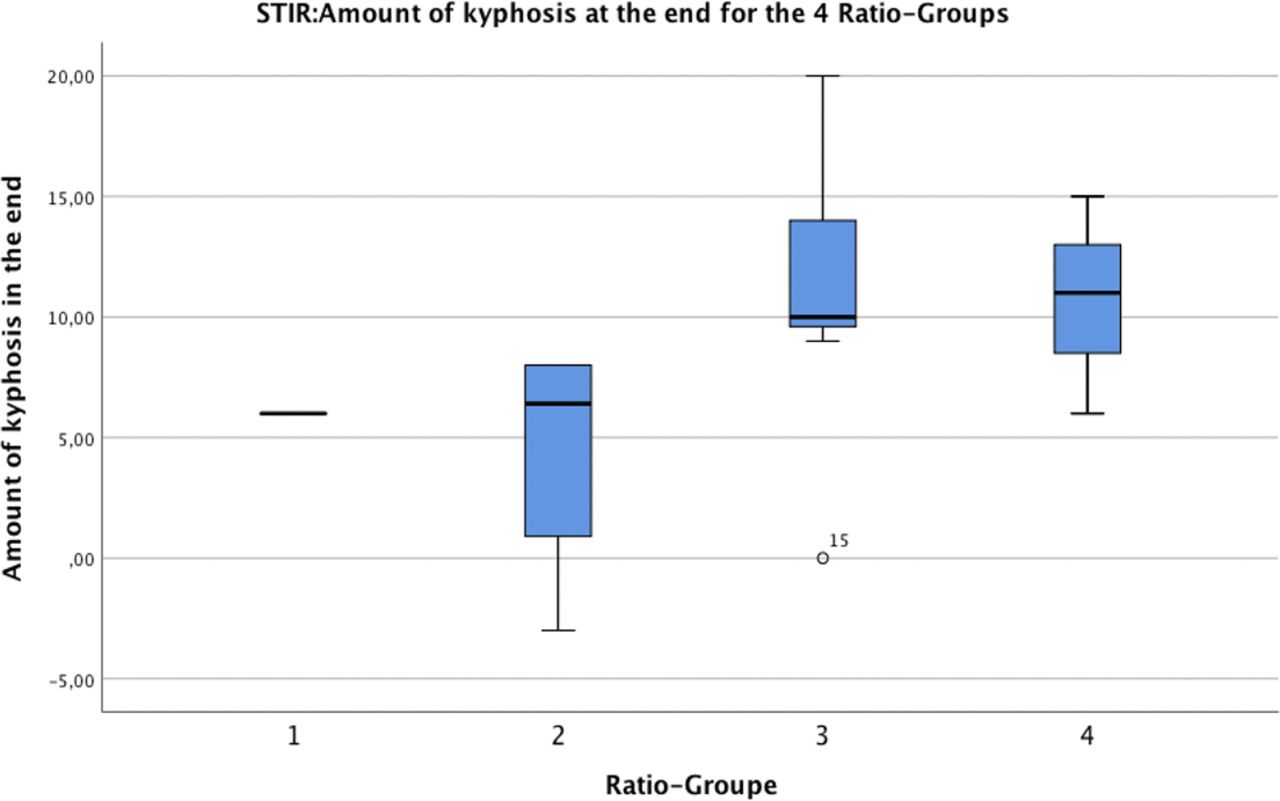

Figure 5

Boxplot SR-STIR for kyphosis till end divided in the 4 groups.

DISCUSSION

Fractures of the spine are a major player in trauma surgery specially in osteoporotic patients and will continue to increase in the future due to demographic change.⁴

In this study, we correlate the kyphotic tendency of an osteoporotic vertebral body fracture based on the MRI signal and the SSIR, which might be helpful for decision-making in the future. We found that if a quotient of the signal intensity is calculated using the edema-induced signal increase and the CSF signal, the affected vertebral body has a tendency to develop kyphosis in the further course. However, a significant correlation of ratio, progression, and persistent instability is only given in the STIR sequences. For the STIR weighting, it can be shown that distributing the ratios to the quotient groups as described in the Method section reveals a clear indication that from a ratio > = 2 (groups 3 and 4), a pronounced kyphosis may be expected in the course (Figures 4 and 5). In the T2 weights, the results for the final survey are not significant.

The average progressive kyphosis increases significantly using STIR weighting until final examination on average to the end of follow-up, as group 3 shows an increase of kyphosis by 7.75° and the associated group 4 even an average of kyphosis by 10.63°.

Increasing kyphosis may generate a biomechanical situation, which may increase the occurrence of further osteoporotic fractures, as an increasing kyphotic deformity can shift the patient's center of gravity. This results in greater flexion bending moments around the apex of the kyphosis, which will promote further increases in kyphotic angulation and additional fractures.^23,24

Further data from larger studies are required; however, a SSIR-STIR greater than 2 is consistent with further kyphotic angulation in the course, so that the authors consider that either kyphoplasty or vertebroplasty or shorter intervals for x-ray have to be considered.

In this study, the STIR-weighted measurements showed the strongest correlation with a strong significance at follow-up (P = .002; SD ± 2.664) and for the final examination (P = .017; SD ± 1.360), even if the STIR weighting is generally an unspecific parameter for edema.

This study has several limitations. Examining the correlation of T-scores, medication, and other clinical data like the pain level was not possible due to inconsistent data.

The main limitations are, however, confounders that change a STIR signal but have no direct connection to osteoporotic fractures.

The influence of hyperemia, infection, and the degree of osteoporosis was not part of this study but should be considered in further studies.

Furthermore, it must be clearly differentiated that with progression an initially strong kyphosis can decrease in the further course due to progressive collapse of the trailing edge, along with a collapse of the vertebral body over its entire width. Even if the direct measurement of kyphosis angle would show lower decrease, this still means a progress and thus an instability. Accordingly, it is conceivable that, due to the design of the study, very unstable fractures due to their total collapse and the associated reduction in the kyphosis-angle were falsely not included in our evaluation. Furthermore, compliance with the follow-up appointments was low, so that significantly fewer patients than initially screened could finally be included in the evaluation. In addition, the inconsistent follow-up time and final examination due to retrospective design may have an impact on the collected data, as for example patients with a follow-up examination of 1 month and that of 12 months were compared.

CONCLUSIONS

In this study, we present the idea to assess the likelihood of further kyphosis of osteoporotic fractures due to different SSIRs. The data from this study might show a significant correlation of progressive kyphosis with increasing SSIR. Surgical intervention might be considered in patients in groups 3 and 4, because a further kyphosis is seen in these patients in our study. Nevertheless, due to the strong limitations following from short follow-up, further studies including higher patient numbers and prospective randomized trials are recommended for further clarification of this finding.
